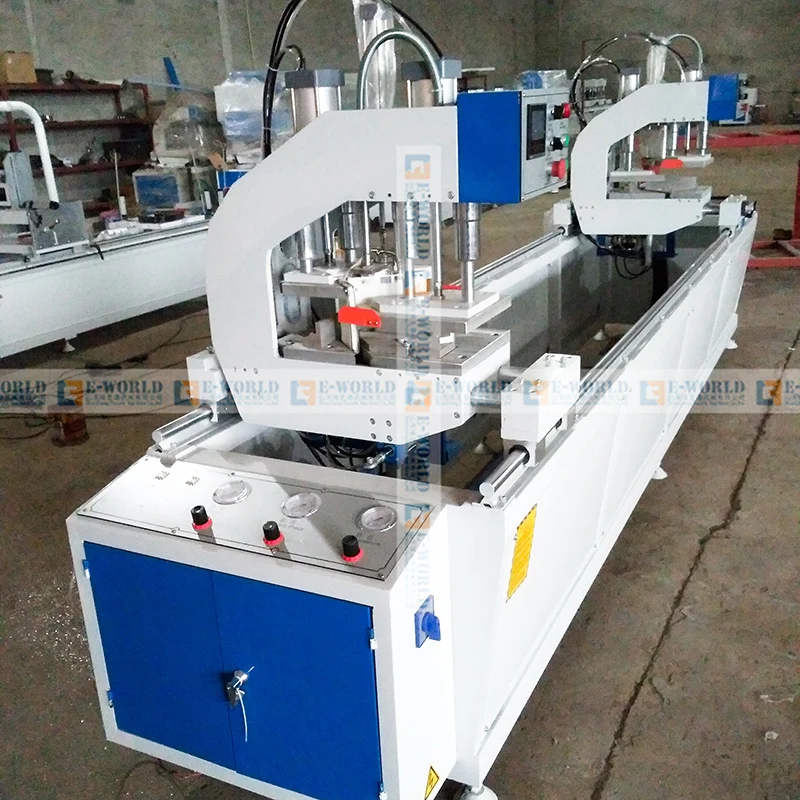

Two Head Welding Machine for PVC Window
Specifications
Two Head PVC Welding Machine
1. Processing Plastic/(U)PVC/Vinyl win-door
2. PLC control
3. Form the window door frame
Double Head Plastic Profile Welding Machine
Welding block
• Extra heating plate
• Extra self-adhesive heating cloth
Features
This machine is one of the necessary equipment for processing PVC window and door.It can complete the whole welding alone.PLC control,stable capability and simple operation.The CM non-oil lubricating bearing and liner moving bearing make high precision and convenient maintaining.The machine has one head that can weld various angles.The two heads can work individually and jointly.It enables welding for many shapes.
Product Description
Specification
|
Technical Parameters |
| Model number | HJ02-3500.2/2A |
| Power supply | 220V 50Hz |
| Air consumption | 100L/min |
| Motor power | 2.5kw |
| Welding length | 400~3500mm |
| Welding profile height | 20~110mm |
| Welding profile width | 120mm |
| Motor rotational speed | 2800 r/min |
| Operation air pressure | 0.4 ~ 0.6Mpa |
| Contour dimension(L×W×H) | 4500×1000×1700mm |
| Machine weight(about) | 950kg |
|
Technical Parameters |
| Place of Origin | Shandong, China (Mainland) |
| Voltage | 380V /220V |
| Power | 2.5kw |
| Frequency | 50Hz |
| Welding Area | welding height: 20~120mm, welding width: ≤120mm |
| Dimensions | 4500*1000*1700mm |
| Weight | 1000KG |
| Usage | PVC/ UPVC/ Vinyl/ Plastic Profile Welding for window door |
| After-sales Service Provided | Engineers available to service machinery overseas |
| application range | PVC/UPVC/Plastic/Vinyl window and door production line |
| Machine type | welding machine |
| certificate | CE&ISO |
| Colour | any colour or as your required |
| Button and contact | customized |
| Program controlling | PLC |
| driving systems | pneumatic driving |
| Max.welding length | 3500mm |
| Welding profile height | 20-120mm |
| Warranty time | 2 years(24 months) |
|
Technical Parameters |
|
Packaging Details: |
Standard PLYwood packing |
|
Delivery Detail: |
5 days after get payment |
