Hot Selling Glass Machine Supply for Industry
Company Advantages
· New type of material is used in glass machine.
· We always pay attention to the industry quality standards, product quality is guaranteed.
· Shandong Eworld Machine Co., Ltd. has done a solid job in its sales network.
Equipment Features
The device is suitable for various metal profile or profile (aluminum alloy doors and windows type material, insulation Duanqiao profiles).
This machine adopts imported CNC automatic computer control, make the operation more simple and convenient.
A special bend arc software.
The ability to detect material of rebound data, eliminate rebound.
Able to bend C shape, U shape, ellipse, circle, such as spring shape.
Because of the use of numerical control hydraulic system, positioning accuracy ≤0.01mm
The performance of their products reach Europe advanced CNC bending arc machine standard.
Specification

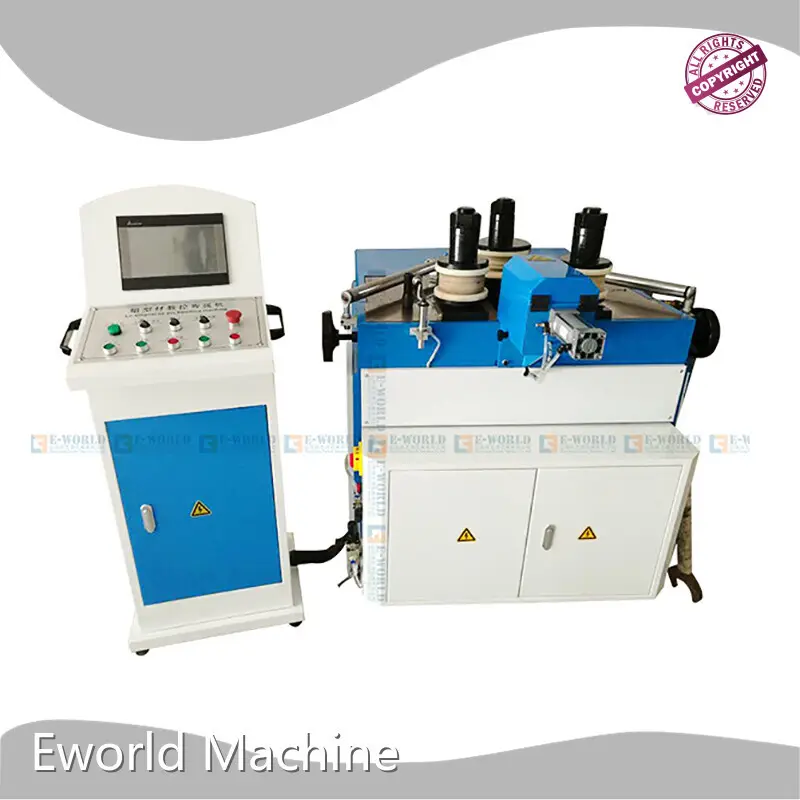

Specifications as follows: CNC Bending Machine for Aluminum Profile
|
Technical Parameters |
|
Model number |
WD360 |
|
Power supply |
380V 50Hz (3-phase,4 wires) |
|
Motor power |
6 kw |
|
Max. Bending width |
150mm |
|
Min bending ard diameter |
230 |
|
Roller rotating speed |
1-8r/min |
|
Roller mould max diameter |
200mm |
|
Top roller traveling |
280mm |
|
Roller diameter |
60mm |
|
Working pressure |
0.2-0.3Mpa |
|
Hydraulic push pressure |
20 T( 200Mpa) |
|
Top roller positioning precision |
0.02mm |
|
Overall size |
1500*1200*1450mm |
|
weight |
1000 Kgs |
|
Technical Parameters |
| Condition | New |
| Place of Origin | Shandong, China (Mainland) |
| Machine Type | Aluminum bending machine |
| Raw Material | Aluminum profile |
| Material / Metal Processed | Aluminum |
| Power | Electric type |
| Automation | Automatic |
| Extra Services | Machining |
| Machine type | bending machine |
| Button and contact/PLC | DELTA |
| Automatic degree | CNC control |
| Power supply | 380V 50Hz |
| Motor power | 6 kw |
| Hydraulic method | |
| Processed profile | Aluminum profile |
|
Packaging & Delivery |
|
Packaging Details: |
Seaworthy package |
|
Delivery Detail: |
20-25 days after get payment |
Our Corporation
Shandong Eworld Machine Co., Ltd. founded in 2002,has been a high and new technology enterprise specializing in developing, empoldering and selling a series of automatic glass machines, laser engraving machine, Curved Toughened Glass Bending Machine, window machines and door machines for many years.
Main products: Automatic Laminated glass (various shapes and low-E) production lines, automatic insulating glass production line, glass washing and drying machines, Automatic glass cutting machines, glass engraving machines, laser engraving machine, CNC router machine, CNC Woodworking machine, CNC Advertising machine, PVC window machine, PVC door machine, PVC window and door machine,PVC bending machines, PVC and Aluminum welding machine, PVC and Aluminum cutting saw,corner cleaning machine and other related products.
Company Features
· Shandong Eworld Machine Co., Ltd. is slowly expanding its foreign market glass machine by expanding production lines.
· Shandong Eworld Machine Co., Ltd. has a strong sense of innovation and marketing model. Eworld Machine provides new, competitive glass machine to meet customer needs. Shandong Eworld Machine Co., Ltd. has gathered an experienced design and production team for glass machine development.
· Shandong Eworld Machine Co., Ltd. firmly believes we will be the most popular glass machine supplier. Please contact.
Enterprise Advantages
Our company attaches great importance to the introduction and cultivation of talents. Therefore, we create a high-level talent team with great education background and professional skills.
To ensure fast and timely customer service, our company has built a perfect after-sales service system.
In the future, Eworld Machine is committed to providing quality products and services for customers. Modern corporate management system, which is highly standardized and scientific, will be strictly carried out. We do that by regarding customers as the center, by regarding talents as the foundation, by regarding technology as the guarantee and regarding quality as the soul.
Since the establishment in Eworld Machine has been pursuing innovation and progress. And we have gained achievements in business scale and strength.
Eworld Machine's products are mainly exported to foreign countries.
