NC8080 Automatic Glass Cutting Machine: Precision Cutting Made Easy
Price: USD4, 300 FOB China main port.
Delivery time: Within 20 days after receiving the down payment.
Payment: 30% of total send by T/T as downpayment, 70% before delivery by T/T.
Introduction
Work flow: After starting the inputting machine, arms automatically suck glass from the shelf. Under sensor controlled, glass automatically find glass edge in the X and Y directions. After moving glass sheets to designated location, transport glass to the automatic cutting table. Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph.
The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing.
Features
Specification
|
Technical Parameters |
| 1 | Working size | 800*800mm |
| 2 | Cutting thickness | 1-12mm |
| 3 | Table size | 1100*1300mm |
| 4 | Cutting speed | 20m/min |
| 5 | Machine bed | Steel lathe bed |
| 6 | X-Y-Z movement | Imported gear rack |
| 7 | Working accuracy | ≤±0.15mm/m |
| 8 | Repositioning accuracy | ≤±0.15mm/m |
| 9 | Driver motors | stepper |
| 10 | Working voltage | AC 220V |
| 11 | Total power | 4 KW |
| 12 | Command code | G code*uoo,*mmg,*plt |
| 13 | Software | Artcam,Wenta |
| 14 | Computer system | Windows 98/2000/XP/Win7 |
| 15 | control | Nc Studio |
| 16 | Oil lubrication system | Automatic |
| 17 | Table surface | bakelite plate |
| 18 | Packing size | 1470*1370*1780mm |
| 19 | Weight | 400KGS |

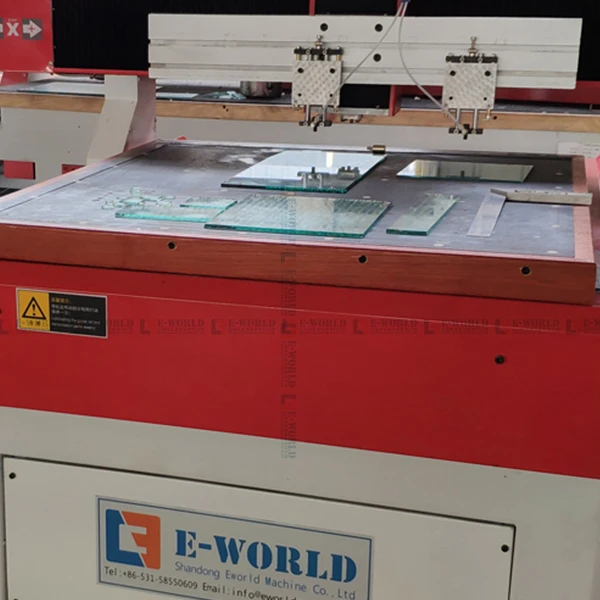

Machine details
Equipment
● Software: Ncstudio,Wenta
● English instruction about manual guide, how to install machine
● AC stepper motor: 4 pcs ( 850 W) from Jiangsu
● Vacuum: 1kw, Blower: 0.75 KW
● Cutting head: Auto oil
● Rack/Guides: reliable brand in china
● CAD Designed graph and figure, all cutting are fully automatic
● The tabletop: The smoothness≤±0.2mm/m
