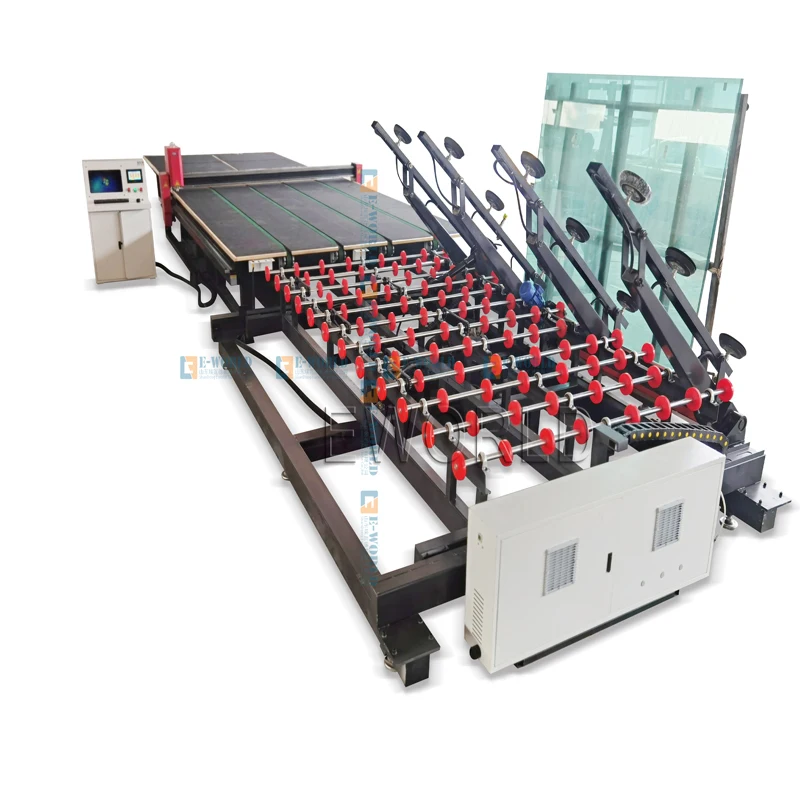

High Quality Full Automatic Glass Cutting Machine Production Line Eworld
Introduction:
1)Work flow: After starting the inputting machine, arms automatically suck glass from the shelf. Under sensor controlled, glass automatically find glass edge in the X and Y directions. After moving glass sheets to designated location, transport glass to the automatic cutting table.Cutter will move to coordinate origin, and automatically start to cut according to the prein stall graph.
2) The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing.
Introduction
1.Bed using thick wall pipe welding and become, the high temperature tempering treatment, ensure that the deformation is small, rigid good, the intensity is big.
2.The X,Y axis adopt reliable motor drive, selected pairing, ensure the smooth movement.
3.Using high precision level gear rack drive, high precision, speed and strength.
4.Adopts imported linear guide square, high precision, long life.
5.Mechanical and electrical full excellent design, selection of all kinds of electrical accessories, the failure rate drop
6.Software compatibility: compatible type3 / Artcam/Castmate/wentai and so on.Many kinds of CAD/CAM design software.
7.Performance worry about: a breakpoint renewal carving, power off recovery, processing time prediction, and other functions, the real human nature design.
Features
Specification
|
Basic Info. |
|
Certification: |
CE |
|
Export Markets: |
North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe |
|
Additional Info. |
| Trademark: | EWORLD |
| Packing: | Packed in Wooden Case, Seaworthy Package |
| Production Capacity: | 10 Sets/ Month |
|
Technical Parameters |
|
Input power |
380V,50HZ/ 220V,60HZ |
|
The cutting thickness |
2-19mm
|
|
The cutting accuracy |
≤±0.15mm/m |
|
The cutting speed |
150m/minute(can be adjustable) |
|
The outline size |
4200*3800*900mm; |
|
Feature |
Ease control |
|
Mechanical |
| The material of the tabletop | Metal tabletop(deformation will not happen)(The smoothness≤±0.2mm/m) |
| Rack/Guides | Imported from Japan and switzerland. |
| Transmission belt/Transmission belt wheels | Italy. |
| Cutter wheels/cutter holder | BOHLE GEMANY. |
| The tabletop | Industrial blankets imported from Korea (color in black). |
| Turret | It use the pneumatic pressure and the spring pressure at the same time to make the cutting best. |
Our Corporation
Shandong Eworld Machine Co., Ltd. founded in 2002,has been a high and new technology enterprise specializing in developing, empoldering and selling a series of automatic glass machines, laser engraving machine, Curved Toughened Glass Bending Machine ,window machines and door machines for many years.
Main products: Automatic Laminated glass (various shapes and low-E) production lines, automatic insulating glass production line, glass washing and drying machines, Automatic glass cutting machines, glass engraving machines, laser engraving machine,CNC router machine,CNC Woodworking machine,CNC Advertising machine,PVC window machine,PVC door machine,PVC window and door machine,PVC bending machines,PVC and Aluminum welding machine,PVC and Aluminum cutting saw,corner cleaning machine and other related products.
