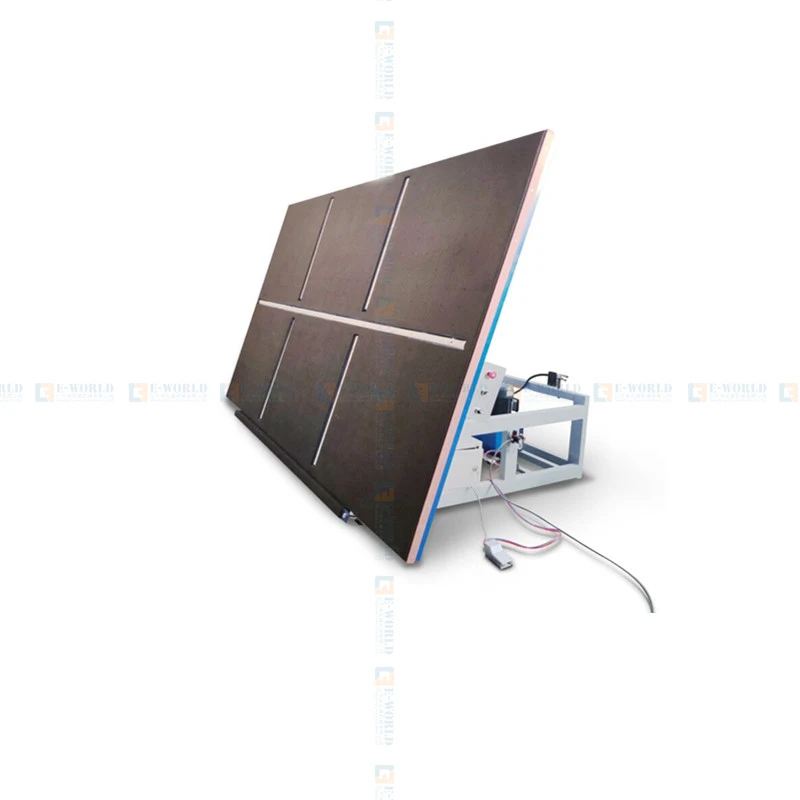

Factory direct air float glass breaking tilting table Eworld
This machine working surface is equiped with air floating blower system for easy handing and shifting movement of the glass.
With hydraulically operated tilting table for stable and smooth ascending and descending motion.
Have a automatic loading bar for catching the glass to ensure safety during loading of glass.It is automatically lifting and falling which is controlled by the control switch with the tilting
The pneumatically controlled X and Y glass breaking bars can be activated by individual foot pedal swith to control each work position and section for large size cutting.
Introduction
This machine working surface is equiped with air floating blower system for easy handing and shifting movement of the glass.
With hydraulically operated tilting table for stable and smooth ascending and descending motion.
Have a automatic loading bar for catching the glass to ensure safety during loading of glass.It is automatically lifting and falling which is controlled by the control switch with the tilting
The pneumatically controlled X and Y glass breaking bars can be activated by individual foot pedal swith to control each work position and section for large size cutting.
Features
Specification
|
Basic Info. |
|
Model NO.: |
WD2236 |
|
Certification: |
CE |
|
Export Markets: |
North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe |
|
Additional Info. |
| Trademark: | EWORLD |
| Packing: | Packed in Wooden Case, Seaworthy Package |
| Production Capacity: | 10 Sets/ Month |
|
Technical Parameters |
|
Input power |
380V,50HZ/ 220V,60HZ |
|
Power |
3 KW
|
|
Table size |
2200*3600mm |
|
Weight |
1150 KGS |
|
Worker |
1 person |
|
Feature |
Ease control |
|
Mechanical |
| The material of the tabletop | Metal tabletop(deformation will not happen)(The smoothness≤±0.2mm/m) |
| Rack/Guides | Imported from Japan and switzerland. |
| Transmission belt/Transmission belt wheels | Italy. |
| Cutter wheels/cutter holder | BOHLE GEMANY. |
| The tabletop | Industrial blankets imported from Korea (color in black). |
| Turret | It use the pneumatic pressure and the spring pressure at the same time to make the cutting best. |
