The latest technology glass shape edging polishing machine mirror beveling machine Eworld
1.Suitable for grinding and polishing the outer edge with rounded or duckbilled shape for circle,
oval and irregular flat glass.
2. Glass is absorbed onto vacuum sucker, motor driven rotary plate or a separate disk drive is an
independent five-star turntable rotation.rotary speed can be adjusted as required.
3. Adopt air cylinder to grind simple shape glass semi-automatically.
4. When grinding the pencil edging, install three grinders to process coarse grinding, fine grinding and polishing.
5. When grinding the beveling, adopt bowl shaped grinding wheels, adjustment the bevel angle by head
tilted back the grinders.
Glass shape edging polishing machine
Functions:
Glass Shape Edging and Beveling Machine is suitable for processing the edge of round shape,
oval shape & other irregular shape of glass sheet with various size and thickness.
It adopts the different wheels to processing different shape like semicircular, flat edge and OG edge etc.
Related Parameters
|
Model |
E-LD1320 |
Diameter of rotary glass |
100～2000mm |
|
Beveling degree |
0～15° |
Speed dial |
0.5 ~ 2.5 r / min |
|
Brand |
Eworld |
Power |
2.5kW |
|
Certification |
CE |
Disk speed |
1.3～6.5r/min |
|
Glass thickness |
3-25mm |
Ease to use |
Product Description
1. Suitable for grinding and polishing the outer edge with rounded or duckbilled shape for circle,oval and irregular flat glass.
2. Glass is absorbed onto vacuum sucker, motor driven rotary plate or a separate disk drive is an independent fivestar turntable rotation.rotary speed can be adjusted as required.
3. Adopt air cylinder to grind simple shape glass semi-automatically.
4. When grinding the pencil edging, install three grinders to process coarse grinding, fine grinding and polishing.
5. When grinding the beveling, adopt bowl shaped grinding wheels, adjustment the bevel angle by head tilted back the grinders.

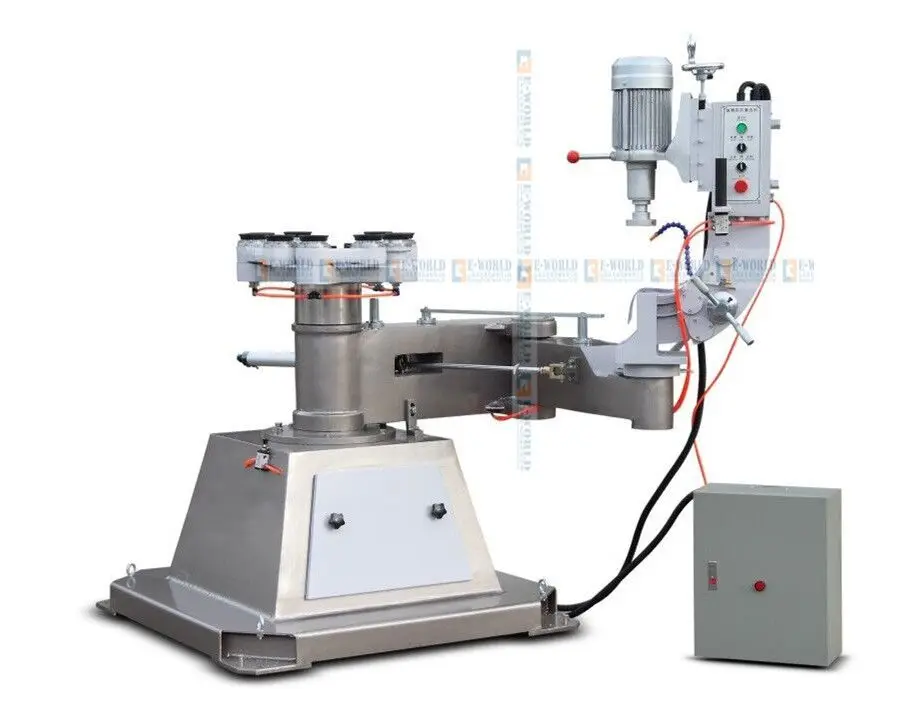

product photo
Adopt the cup shape wheel and adjust the angle of motor can be processing the bevel edge.
Machine Detials
Suitable for grinding and polishing the outer edge with rounded or duckbilled shape for circle,oval and irregular flat glass.
Company Profile
*20years factory production experience
*3 years machine warranty
*156 exported country experience
*20000 square meters
Glass machine&upvc windows machine factory
*About Shandong Eworld Machine Co., Ltd.
Shandong Eworld Machine Co., Ltd is one of the famous and big manufacturers of glass equipment, windows equipment, CNC equipment. Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine in China.
Eworld group has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, sold working, and cordial services
