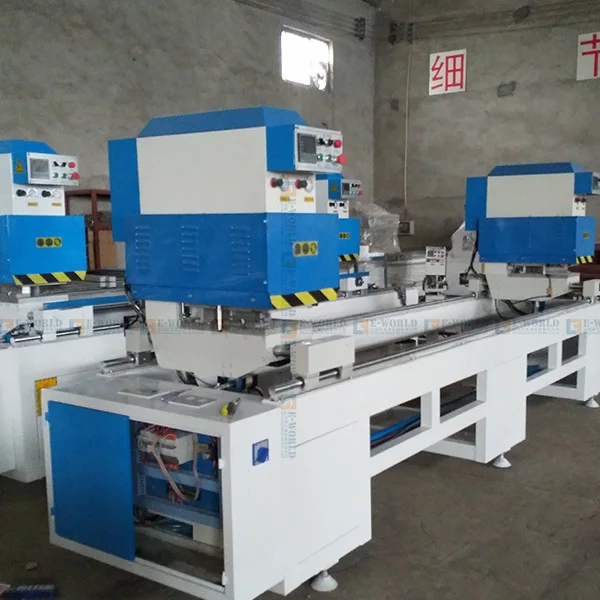

Seamless Double Head PVC Welding Machine Precision Welds For Doors & Windows
Specifications
1. Win-door seamless weld
2. PLC control
3. Welding and cleaning white and color profile
Features
Double Head Seamless Welding Machine For Windows Doors
●Design and produce all devices for window door
●Dual synchronized welding heads greatly lift production speed, forming flawless invisible seams for uPVC door and window frames.
●Adaptive thermal preheating balances heat distribution, avoiding profile deformation for both white and laminated colored PVC extrusions.
●Precise PLC positioning system ensures identical joint tightness, with built-in automatic flash trimming to cut post-processing labor.
●Adjustable clamping force stabilizes profiles during fusion, creating weather-resistant, high-strength corner connections.
advantages
☀ 1. This PVC window welding machine can Achieves 0.2mm seamless welding and cleaning for Vinyl/ PVC/ UPVC/ Plastic windows and doors can clear welding beading at one time after finishing the welding, and can strictly control the size of welding seam; therefore, after welding of colorful section steel is finished, its surface welding creater looks perfect and top-grade, and its welding strength is higher than that of the original ones.
☀ 2. Through controlling pneumatic system, WFHJ02-4500.2A -welding and cleaning (seamless) welding machine for Vinyl/ PVC/ plastic window increases processing mode of strengthening the welding strength, especially software processing in melting-welding clearance and welding process, thus it can guarantee optimal welding strength in various environments; the seamless window welding machine can also conduct quantitative adjustment according to digital parameters.
☀ 3. The cutter features good exchangeable. The cutter of the WFHJ02-4500. 2A seamless welding machine adopts special material, via special heat-treatment processing technics and finish accuracy. Can welding various shape profiles, like joint-mitre, cross muntin and so on. The cutter is standardization completely, to achieve exchangeable, without professional the cutter can change without professional.
☀ 4.Integrative window-support welding. WFHJ02-4500.2A cleaning welding machine uses eight cutting tools to weld and clear corners and seams, and it can also conduct low-seam clearing for window-support and crossed window-support; various window-support have perfect welding surface and high welding strength.
☀ 5. All machines parts, we use famous brand.
Kindly note: And also hope you can supply us the max. profile thickness/height of your profile, and also please inform us you want only weld common white profile or weld both common white profile and color profile, after you tell us these information, we can suggest you which uPVC window welding machine model is better for you, thanks very much!
Specification
|
Technical Parameters |
| Model number | WFHJ02-4500.2A |
| Power supply | 380V/220V 50Hz |
| Air consumption | 180L/min |
| Input power | 4.5kw |
| Welding length | 420~3500mm |
| Welding profile height | 20~120mm |
| Welding profile width | 140mm |
| Operation air pressure | 0.6 ~ 0.8Mpa |
| Humidity | ≤80% (no dew) |
| Contour dimension(L×W×H) | 5500×1050×1800mm |
| Temperature | -5~+40 |
| Machine weight(about) | 500kg |
| Welding methods | Weld window frame |
| Weld window-support | |
| Weld from free angle(we can do for you) | |
| Weld from 180 angle |
|
Quick Details |
|
Place of Origin |
Shandong, China (Mainland) |
|
Model Number |
WFHJ02-4500.2A |
|
Voltage |
380V/220V |
|
Power |
4.5KW |
|
Frequency |
50Hz |
|
Welding Area |
Welding length: 420~3500mm, Welding profile height: 10~120mm |
|
Dimensions |
5500*1050*1800mm |
|
Weight |
1500KGS |
|
Usage |
PVC/ UPVC/ Plastic/ Vinyl window seamless welding machine |
|
After-sales Service Provided |
Engineers available to service machinery overseas |
|
Application range |
PVC/ UPVC/ Plastic/ Vinyl window door production |
|
Certificate |
CE&ISO |
|
Colour |
any colour or as your required |
|
Button and contact |
DELIXI |
|
Program controlling |
PLC |
|
Driving systems |
pneumatic driving |
|
Machine type |
Welding profile welding |
|
Function |
welding and cleaning |
|
Welding type |
seamless welding |
|
Warranty time |
1 years |
Application
This seamless double head PVC window welding machine targets full-spectrum uPVC doors and windows manufacturing scenarios. It fits mass production factories producing residential casement, sliding and tilt-turn windows, as well as entry and balcony uPVC doors with colored or co-extruded profiles. Custom window workshop operators adopt it for high-end decorative window frames requiring invisible welding lines. It also supports fabrication of PVC sunroom enclosures and small architectural partition frames. For Small-to-medium processing plants can rely on the seamless welding machine stable output for bulk wholesale window supplies, while for high-end building material suppliers can use it to craft premium finished window assemblies matching commercial villa and apartment construction standards.
