PVC Window Machine - Efficient Copy Milling
Specifications

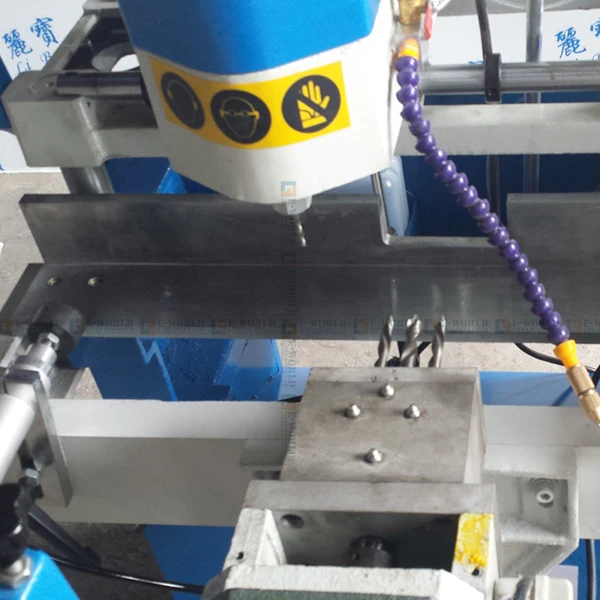

Double-head Copy Router machine
1. Copy-routing of different shapes of holes and grooves
2. Process both PVC&Aluminum
Production description
1. The machine is used for copy-routing of different shapes of holes and grooves of aluminum and PVC/ UPVC/ Plastic/ Vinyl doors and windows, The belt is accelerated to achieve the high milling speed(1200 r/min) the features of easy operation, wide usage and high efficiency.
2. Before you buy the machine, please make sure then tell me your local power supply, then we can make the right according to your true voltage.
Specification
|
Technical Parameters |
| Model number: | LSX01-100 |
| Working air pressure | 0.4~0.6Mpa |
| Air consumption | 30L/min |
| Power supply | 380V 50Hz |
| Input power | 0.75kw×2 |
| Cutter rotational speed | 12000 r/min |
| Processing range | Vertical: 290×90mm |
| Horizontal: 300×100mm | |
| Outside dimension | 1000×1130×1500mm |
| Weight(about) | 220kg |
|
Quick Details |
|
Place of Origin |
Shandong, China (Mainland) |
|
Model Number |
LSX01-100 |
|
After-sales Service Provided |
Engineers available to service machinery overseas |
|
usage |
window and door frame making |
|
certificate |
CE&ISO |
|
funcolorction |
Any colour or as your required |
|
Button and contact |
Schneider |
|
Cutter rotational speed |
12000 r/min |
|
Outside dimension |
(Vertical: 290*90mm) (Horizontal: 300*100mm) |
|
Input power |
0.75kw*2 |
|
Air consumption |
30L/min |
|
function |
window door frame holes and grooves milling |
|
Warranty time |
one year |
|
Packaging & Delivery |
|
Packaging Details: |
standard PLYwood packing |
|
Delivery Detail: |
7 days after get payment |
Our Corporation
Shandong Eworld Machine Co., Ltd. founded in 2002,has been a high and new technology enterprise specializing in developing, empoldering and selling a series of automatic glass machines, laser engraving machine, Curved Toughened Glass Bending Machine, window machines and door machines for many years.
Main products: Automatic Laminated glass (various shapes and low-E) production lines, automatic insulating glass production line, glass washing and drying machines, Automatic glass cutting machines, glass engraving machines, laser engraving machine, CNC router machine, CNC Woodworking machine, CNC Advertising machine, PVC window machine, PVC door machine, PVC window and door machine,PVC bending machines, PVC and Aluminum welding machine, PVC and Aluminum cutting saw,corner cleaning machine and other related products.
