Top Insulating Glass Production Line Company
Product details of the insulating glass production line
Product Specification
Feature: EASE TO USE

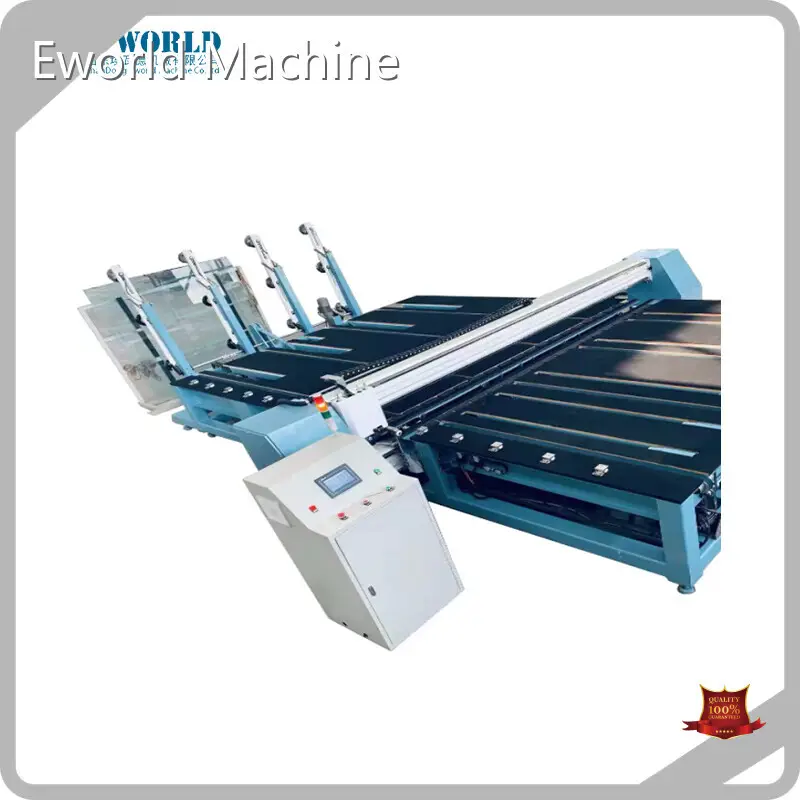

Name: Full Automatic EVA Laminated Glass Cutting Machine
Power: 15KW
Key words: EVA Laminated Glass Cutting Machine
Model: SWD-3826
Product Description
Eworld Machine insulating glass production line is produced according to the rigorous production management system. The performance and quality of this product are stable and reliable. The product has got high client satisfaction and has a great potential for wider application.
Introduction:
Main Structure:
gantry milling. So the frame has high stability and strength. Two-part construction to assemble the machine. The first part is the
artificial auxiliary feeding and transmission part, equipped with automated positioning system. The second paragraph contains the
upper and lower knife cutting system, the cutting film system, the heating system, and the auxiliary discharge system.
| Max. glass cutting size | 3660×2440（mm） |
|---|---|
| Min. glass cutting size | 100×100（mm） |
| Cutting glass thickness | 3mm+0.38+3mm----10mm+0.76+10mm ( laminated glass ) |
| Cutting Error ( parallel ) | ≤±0.5mm |
| Cutting efficiency | 3-4 minutes/big piece |
| Diagonal Error | ≤±1mm/m |
| Cutter life | 30000-50000 meters |
| Machine outline dimension | 4800*3800*1300mm |
| Packing size | 40HQ*1 |
| Weight | 3000KG |
Answer: Yes, we are professional manufacture which has more than 5 workshops.
Q2: How about the service?
Answer:
1). reply it at once if from Ali-trade manager if by email, it reply it within 12 hour
2). deliver max. days within 15 days
3). 24 hours for after-sale service
4). more than 12 years experience in this kind of machine field
5). fluent English, communication barrier-free
Q3: What s the guarantee?
Answer:
1). Our guarantee for 18 months.
2). 24 hour's technical support by email or calling
3). English manual and video tutorial
4). 2 years quality guaranty for the machine (excluding the consumables)
5). We will provide the consumable parts at an agency price
6). 24 hours of online service each day, free technical support.
Q4: Do you provide equipment operation training?
Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passports.
Q5: if our price is higher than another company or factories?
Answer:please check, what is the difference of the machine parts, service and guarantee, especially the machine inner electric parts, sometimes, if machines have a breakdown, the most reason is the machine inner electric parts the problem, but we use the famous and reliable parts for the machines inside.
Q6: How long is the delivery time?
Answer: For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to the client's specific requirements, it would be 15 to 30 days.
Answer: Any payment method you want, such as L/C, T/T, D/P, West union, and so on.
Company Feature
• Our products have been sold to the domestic market for a long time and to overseas markets such as The sales scale and quantity rank top in the domestic industry.
• Eworld Machine has gone through years of development. So far, our production and processing level ranks top in the industry.
• Eworld Machine has an elite team with rich industry experience. The team members are professional in scientific research, technology, operation, sales, and services.
• The condition of our company's geographic position is superior with multi traffic lines. We provide convenience for the outward transportation of various products and guarantee the stable supply of goods.
If you are in need for products of reliable quality and affordable price, please contact us at any time!
