NO.1
++
New Glass Processing Machines Company for Construction Industry
Key words
Vertical Glass Drilling and Milling Machine
Power
12kw
Feature
Ease to use
Model
EWVC 2530
Name
Vertical Glass Drilling and Milling Machine
Product details of the glass processing machines
Product Specification
Feature: Ease to use
Model: EWVC 2530
Name: Vertical Glass Drilling and Milling Machine
Power: 12kw
Key words: Vertical Glass Drilling and Milling Machine
Quick Detail
The production processes for Eworld Machine glass processing machines are primarily based on renewable resources. We are committed to research and development of new technology, so that our product quality and performance is in the forefront of the industry. Since the product meets the customer's expectation perfectly, the product will have a wider market.
Product Introduction
Eworld Machine will present you glass processing machines's details in the following section.
Machine Description：

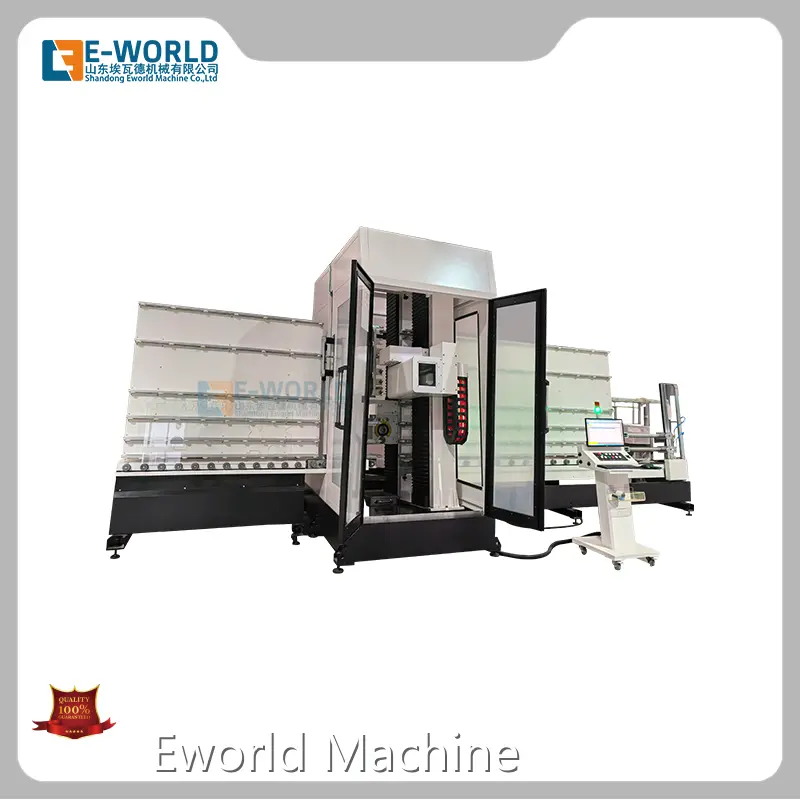

Vertical glass CNC machine. It is a five-axis composite CNC working center which is designed for drilling hole, milling notches, cut-outs, countersinking, inner grinding and polishing on all regular and most irregular glass sheet with thickness of 4-25mm. The machine is controlled by a high-end numerical control operating system to achieve precise control of each servo axis. This flexibility of the control system can meet the requirement of different products. Combined with the structure of high rigidity and high stability, glass processing in high-speed and high-precision can be easily implemented. The electrical components used in the machine are CE standard, and the connectors of the electrical components are waterproof, which can ensure safety.
All work can be processed automatically and the complicated jobs can be performed in quick speed and high efficiency with smallest investment. Thanks to the self-developed CAM software, many powerful functions can be used. It can automatically generate processing technology for different processing graphics, and generate processing programs according to specific processes. Same time, it also has auxiliary functions such as library management and tool library management, which greatly reduces the heavy processing operations, making it so easy to operate. The vertical glass drilling and milling machine is a perfect solution for processing frameless shower door, glass curtain wall, balustrade, building glass etc.
| Machine size (Length*width*height) |
8200X3100X4200mm |
|---|---|
| Machine weight | 6100KG |
| Max glass size | 2000x3000mm |
| Min glass size | 500x300mm |
| Glass thickness | 4-25mm |
| Max Glass weight | 310KG |
| Max axis speed(X，Y/V，Z/W） | 60，50，15m/min |
| Spindle power | 7.5+7.5 KW |
| Motor power | 12 KW |
| Max spindle rotating speed | 12000 rpm |
| Tool holder cone specification | BT30 |
