NO.1
++
High Quality Glass Cutting Cnc Machine Company
Brand
Eworld
Power
12kw
Feature
Ease to use
Function
Glass Drilling Milling
Model
EWVC 2530
Product details of the glass cutting cnc machine
Product Specification
Model: EWVC 2530
Power: 12kw
Brand: Eworld
Function: Glass Drilling Milling
Feature: Ease to use
Product Introduction
The production of Eworld Machine glass cutting cnc machine strictly complies with ISO standard manufacturing processes. At the same time, it also guarantees the upgrade and maintaince of glass cutting cnc machine. Shandong Eworld Machine Co., Ltd. is certified to all relative certificates that is needed for glass cutting cnc machine.
Machine Description：

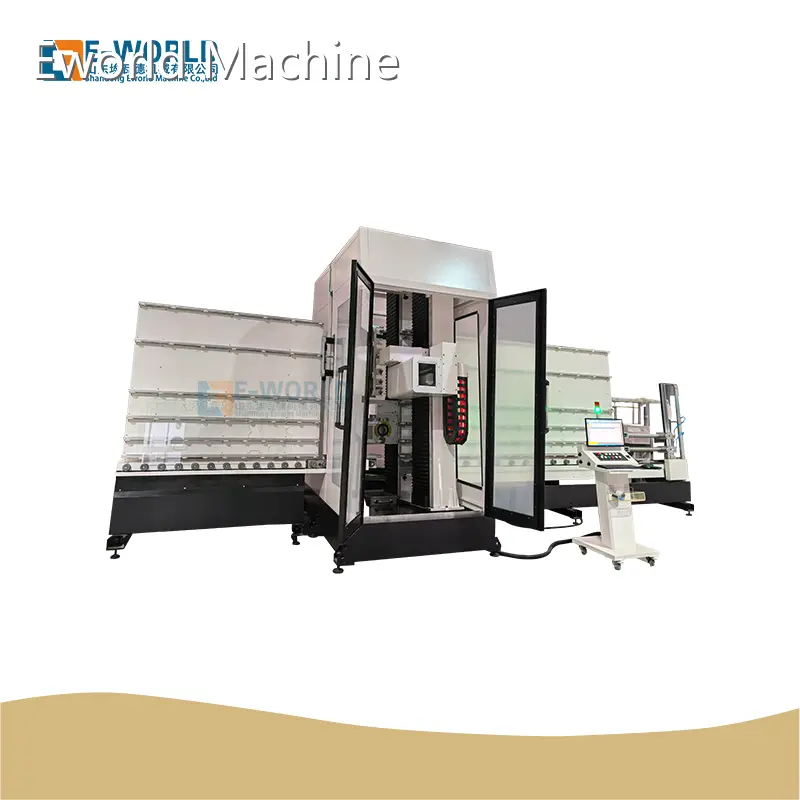

Vertical glass CNC machine. It is a five-axis composite CNC working center which is designed for drilling hole, milling notches, cut-outs, countersinking, inner grinding and polishing on all regular and most irregular glass sheet with thickness of 4-25mm. The machine is controlled by a high-end numerical control operating system to achieve precise control of each servo axis. This flexibility of the control system can meet the requirement of different products. Combined with the structure of high rigidity and high stability, glass processing in high-speed and high-precision can be easily implemented.
The electrical components used in the machine are CE standard, and the connectors of the electrical components are waterproof, which can ensure safety.
All work can be processed automatically and the complicated jobs can be performed in quick speed and high efficiency with smallest investment. Thanks to the self-developed CAM software, many powerful functions can be used. It can automatically generate processing technology for different processing graphics, and generate processing programs according to specific processes. Same time, it also has auxiliary functions such as library management and tool library management, which greatly reduces the heavy processing operations, making it so easy to operate.
The vertical glass drilling and milling machine is a perfect solution for processing frameless shower door, glass curtain wall, balustrade, building glass etc.
|
Item |
Unit |
EWVC 2530 |
|---|---|---|
|
Machine size(Length*width*height) |
mm |
≈8200X3100X4200 |
|
Machine weight |
KG |
≈6100 |
|
Max glass size |
mm |
2000x3000 |
|
Min glass size |
mm |
500x300 |
|
Glass thickness |
mm |
4～25 |
|
Max Glass weight |
Kg |
310 |
|
Max axis speed(X，Y/V，Z/W） |
m/min |
60，50，15 |
|
Spindle power |
kw |
7.5+7.5 |
|
Motor power |
kw |
12 |
|
Max spindle rotating speed |
rpm |
12000 |
|
Max tool diameter |
mm |
100 |
|
Straight line precision |
mm/m |
±0.1 |
NO.2
++
NO.3
++
FAQ
Answer: Yes, we are professional manufacture which has more than 5 workshops.
Q2: How about the service?
Answer:
1). reply it at once if from Ali-trade manager if by email, it reply it within 12 hour
2). deliver max. days within 15 days
3). 24 hours for after-sale service
4). more than 12 years experience in this kind of machine field
5). fluent English, communication barrier-free
Q3:What s the guarantee?
Answer:
1). Our guarantee for 18 months.
2). 24 hour's technical support by email or calling
3). English manual and video tutorial
4). 2 years quality guaranty for the machine (excluding the consumables)
5). We will provide the consumable parts at an agency price
6). 24 hours of online service each day, free technical support.
Q4: Do you provide equipment operation training?
Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q5:if our price is higher than another company or factories?
Answer:please check, what is the difference of the machine parts, service and guarantee, especially the machine inner electric parts, sometimes, if machines have a breakdown, the most reason is the machine inner electric parts the problem, but we use the famous and reliable parts for the machines inside.
Q6:How long is the delivery time?
Answer: For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to the client's specific requirements, it would be 15 to 30 days.
Q7: What is the payment?
Answer: Any payment method you want, such as L/C, T/T, D/P, West union, and so on.
Company Feature
• Service ability is one of the standards for judging whether an enterprise is successful or not, because it is related to the satisfaction of consumers or clients for the enterprise. Based on the short term goal of customers' needs, we build a comprehensive service system to provide various and quality services. In this way, we could create good service experience for customers.
• Eworld Machine's location enjoys a beautiful environment with traffic convenience, which is good for the outward transportation of Glass Cutting Machine & Table,Glass Edging Machine,Glass Washing And Drying Machine,Glass Drilling Machine,Insulating Glass Production Line,Aluminum Window Machine,PVC Window Machine.
• Our products are sold throughout the country and exported to Southeast Asia, Africa and other regions. They are deeply loved and sought after by local customers.
• Eworld Machine was incorporated in After years of trial and struggle, we have finally gained a foothold in the market .
We have been providing high quality glass cutting cnc machine for a long time. We look forward to working with you.
