Good Selling Aluminium Bending Machine Company
Company Advantages
· The whole production process of Eworld Machine aluminium bending machine is completed by using sophisticated and modern machines in adherence to the industry set standards.
· This product passes an international standard quality certification.
· Shandong Eworld Machine Co., Ltd.'s service team always respect every customers.
Equipment Features
1.The aluminium bending machines are suitable for various metal profile or profile (aluminum alloy doors and windows type material, insulation Duanqiao profiles).
2.These CNC profile bending machines adopts imported CNC automatic computer control, make the operation more simple and convenient.
3.A special bend arc software.
4.The ability to detect material of rebound data, eliminate rebound.
5.Able to bend C shape, U shape, ellipse, circle, such as spring shape.
6.Because of the use of numerical control hydraulic system, positioning accuracy ≤0.01mm
7.The performance of their products reach Europe advanced CNC bending arc machine standard.
Product Design
Automated aluminum profile bending lines combines a rigid welded steel frame with servo-driven, hardened steel rollers arranged in a three-axis, closed-loop architecture. The open-C-frame grants unobstructed loading of long sections, while quick-change tooling and automatic mandrel support prevent profile distortion. A touchscreen PLC stores curve libraries, enabling instant recall and real-time correction for flawless arcs every cycle.
Specification

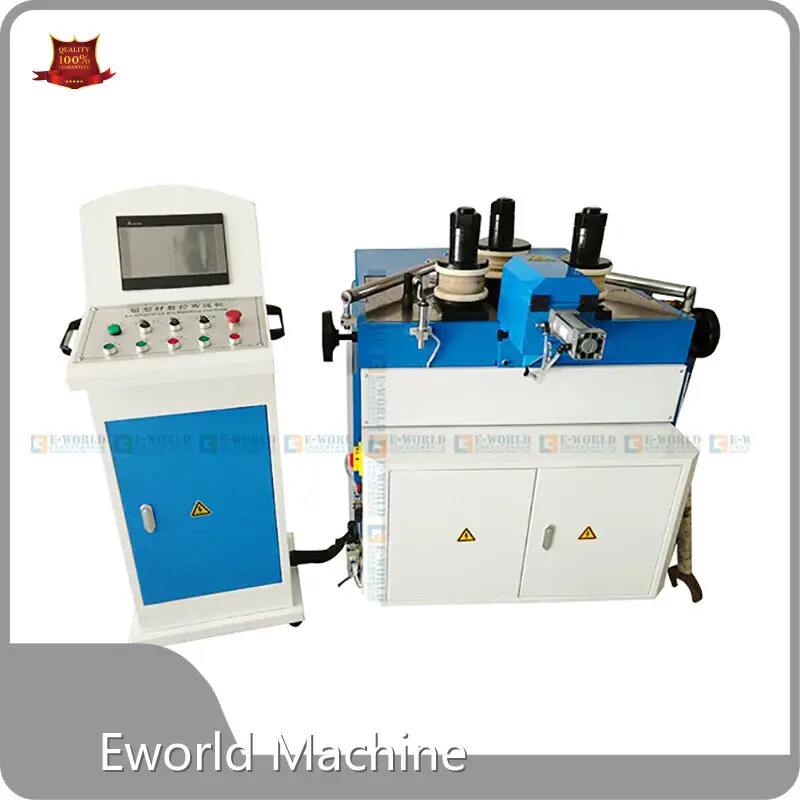

Specifications as follows: CNC Profile Bending Equipment for Aluminum Profile
|
Technical Parameters |
|
Model number |
WD360 |
|
Power supply |
380V 50Hz (3-phase,4 wires) |
|
Motor power |
6 kw |
|
Max. Bending width |
150mm |
|
Min bending ard diameter |
230 |
|
Roller rotating speed |
1-8r/min |
|
Roller mould max diameter |
200mm |
|
Top roller traveling |
280mm |
|
Roller diameter |
60mm |
|
Working pressure |
0.2-0.3Mpa |
|
Hydraulic push pressure |
20 T( 200Mpa) |
|
Top roller positioning precision |
0.02mm |
|
Overall size |
1500*1200*1450mm |
|
weight |
1000 Kgs |
|
Technical Parameters |
| Condition | New |
| Place of Origin | Shandong, China (Mainland) |
| Machine Type | Aluminum bending machine |
| Raw Material | Aluminum profile |
| Material / Metal Processed | Aluminum |
| Power | Electric type |
| Automation | Automatic |
| Extra Services | Machining |
| Machine type | bending machine |
| Button and contact/PLC | DELTA |
| Automatic degree | CNC control |
| Power supply | 380V 50Hz |
| Motor power | 6 kw |
| Hydraulic method | |
| Processed profile | Aluminum profile |
|
Packaging & Delivery |
|
Packaging Details: |
Seaworthy package |
|
Delivery Detail: |
20-25 days after get payment |
application
This CNC aluminum profile bending machine shapes aluminum, steel and PVC extrusions into precise arcs for curtain-wall mullions, arched windows, door frames, handrails and display showcases. It bends solar-panel frames, automotive roof rails and bicycle rims with distortion-free curves, meeting aerospace tolerances when optional mandrels are fitted.
Fabricators use the aluminum section bending machine to create art-installation rings, lighting trusses and furniture legs, while signage makers form LED channel letters and large-diameter logos. Shipbuilders curve deck rails and hatch frames, and elevator companies bend decorative fascia profiles. The stored-program library lets users switch instantly between architectural glazing beads and irregular ellipses, making the aluminum extrusion bending machine indispensable for custom metal shops, fenestration factories and OEM suppliers seeking rapid, repeatable curves without secondary correction.
Looking for window profile bending machine, This device has just what you need!
Company Features
· Over the years, Shandong Eworld Machine Co., Ltd. have made big progress in the development aluminium bending machine.
· Shandong Eworld Machine Co., Ltd. has internationally leading quality control capabilities and good brand reputation. Many products in Shandong Eworld Machine Co., Ltd. were authenticated by National new technology and new production.
· Shandong Eworld Machine Co., Ltd. adheres to the principle of steady development, focuses on improving quality of aluminium bending machine and production efficiency. Welcome to visit our factory!
Product Comparison
Compared with the aluminium bending machine of our peers, the aluminium bending machine we produce is provided with the following advantages.
Enterprise Advantages
Eworld Machine has a backbone team with good reputation, proficient business and strong management ability.
Eworld Machine has established a complete service network to provide professional, standardized, and diversified services. The quality pre-sales and after-sales services can meet well the needs of customers.
Eworld Machine is committed to becoming a leading enterprise in the industry. We take 'integrity, tenacity, and unyielding' as the enterprise spirit, and persist in the concept of 'quality is the soul of the enterprise and the foundation of the enterprise's survival'.
Our company was incorporated in We have passed years of spring and autumn.
Eworld Machine has a mature online marketing system. Glass Cutting Machine & Table,Glass Edging Machine,Glass Washing And Drying Machine,Glass Drilling Machine,Insulating Glass Production Line,Aluminum Window Machine,PVC Window Machine are sold to major provinces, cities and autonomous regions across the country based on an online platform. Moreover, some products are exported to Europe, America, Southeast Asia, and other countries and regions.
