NO.1
++
Glass Cutting Cnc Machine Products Wholesale - Eworld Machine
Brand
Eworld
Power
12kw
Feature
Ease to use
Model
EWVC 2530
Name

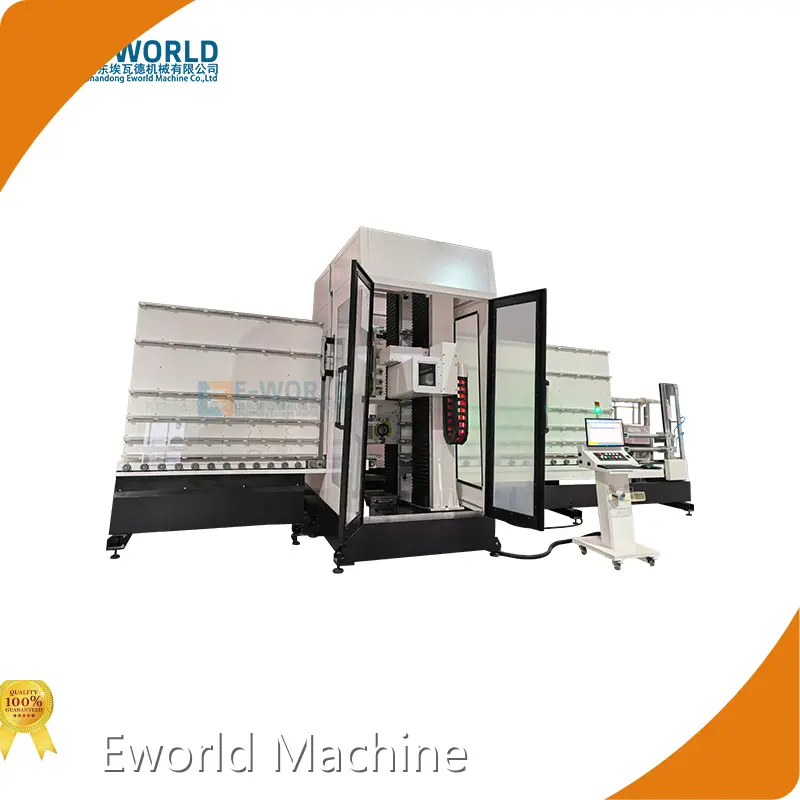

Vertical Glass Drilling and Milling Machine
Machine Description：
Vertical glass CNC machine. It is a five-axis composite CNC working center which is designed for drilling hole, milling notches, cut-outs, countersinking, inner grinding and polishing on all regular and most irregular glass sheet with thickness of 4-25mm. The machine is controlled by a high-end numerical control operating system to achieve precise control of each servo axis. This flexibility of the control system can meet the requirement of different products. Combined with the structure of high rigidity and high stability, glass processing in high-speed and high-precision can be easily implemented. The electrical components used in the machine are CE standard, and the connectors of the electrical components are waterproof, which can ensure safety.
All work can be processed automatically and the complicated jobs can be performed in quick speed and high efficiency with smallest investment. Thanks to the self-developed CAM software, many powerful functions can be used. It can automatically generate processing technology for different processing graphics, and generate processing programs according to specific processes. Same time, it also has auxiliary functions such as library management and tool library management, which greatly reduces the heavy processing operations, making it so easy to operate. The vertical glass drilling and milling machine is a perfect solution for processing frameless shower door, glass curtain wall, balustrade, building glass etc.
| Machine size (Length*width*height) |
8200X3100X4200mm |
|---|---|
| Machine weight | 6100KG |
| Max glass size | 2000x3000mm |
| Min glass size | 500x300mm |
| Glass thickness | 4-25mm |
| Max Glass weight | 310KG |
| Max axis speed(X，Y/V，Z/W） | 60，50，15m/min |
| Spindle power | 7.5+7.5 KW |
| Motor power | 12 KW |
| Max spindle rotating speed | 12000 rpm |
| Tool holder cone specification | BT30 |
NO.2
++
NO.3
++
++
++
++
++
++
++
FAQ
Yes,we are the professional manufacture which have more than 5 workshops.
2. How about the service?
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english, communication barrier free
3. What’s the guarantee?
1).Our guarantee for 18 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
4. Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.
5. If our price is higher than another company or factories?
Please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.
6. How long is the delivery time?
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
7. What is the payment ?
Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
Company Advantages
· glass cutting cnc machine is pretty and colorful.
· The quality of the product is fully assured as we have been sticking to 'quality first' since the establishments.
· Shandong Eworld Machine Co., Ltd. achieves rapid growth with limited corporate resources.
Company Features
· With high-end technology equipped, Eworld Machine has won much recognition from customers for its exquisite glass cutting cnc machine.
· Our glass cutting cnc machine is made from our advanced innovative technology.
· Our management tenet is to provide an environment that leads to productive employees.
Application of the Product
glass cutting cnc machine of Eworld Machine can be used in various scenarios in different fields.
With many years of practical experience, Eworld Machine is capable of providing comprehensive and efficient one-stop solutions.
