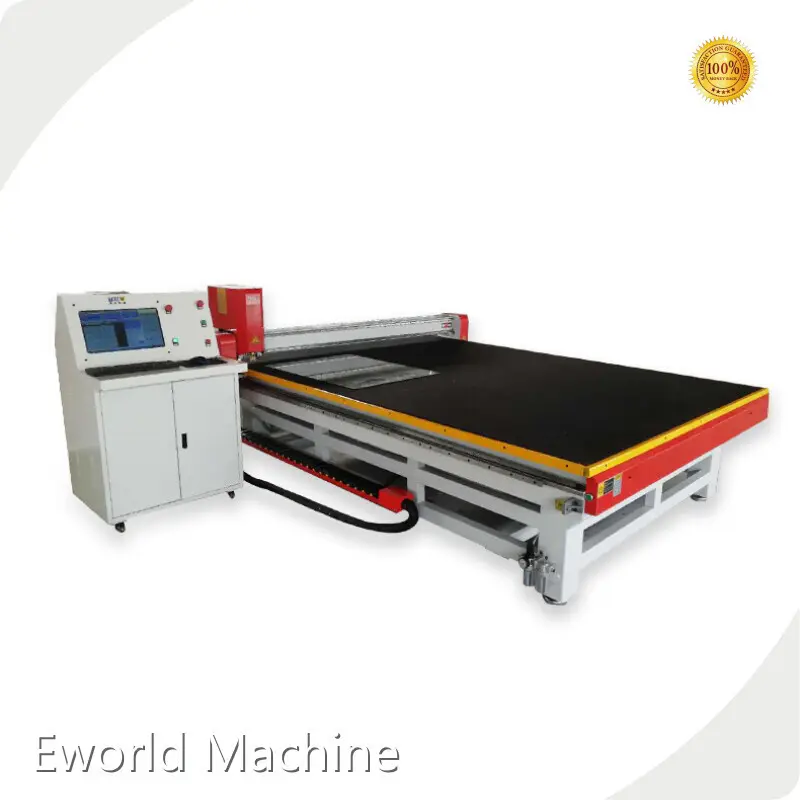

Eworld Machine Small Cnc Glass Cutting Machine Price List 1
Eworld Machine Small Cnc Glass Cutting Machine Price List 2
Eworld Machine Small Cnc Glass Cutting Machine Price List 3
Eworld Machine Small Cnc Glass Cutting Machine Price List 4
Eworld Machine Small Cnc Glass Cutting Machine Price List 5
Eworld Machine Small Cnc Glass Cutting Machine Price List 6
Eworld Machine Small Cnc Glass Cutting Machine Price List 7
Eworld Machine Small Cnc Glass Cutting Machine Price List 1
Eworld Machine Small Cnc Glass Cutting Machine Price List 2
Eworld Machine Small Cnc Glass Cutting Machine Price List 3
Eworld Machine Small Cnc Glass Cutting Machine Price List 4
Eworld Machine Small Cnc Glass Cutting Machine Price List 5
Eworld Machine Small Cnc Glass Cutting Machine Price List 6
Eworld Machine Small Cnc Glass Cutting Machine Price List 7

Eworld Machine Small Cnc Glass Cutting Machine Price List

Inquiry

Product details of the small cnc glass cutting machine


Product Overview

Strict production standard: the production of Eworld Machine small cnc glass cutting machine follows strict production standards that comply with the international ones and meet the requirements of customers. As per quality, this product is strictly tested by professional persons. Eworld Machine has taken the lead in manufacturing small cnc glass cutting machine among the industry.


Product Introduction

The small cnc glass cutting machine of Eworld Machine has the following advantages, compared with similar products in the market.

116

Introduction

1. Work flow: After starting the inputting machine, arms automatically suck glass  from the shelf. Under sensor controlled, glass automatically find glass edge in the X and Y directions. After moving glass sheets to designated location, transport glass to the automatic cutting table.Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph.

2. The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing.

Features

Eworld Machine Small Cnc Glass Cutting Machine Price List 9
01
Bed using thick wall pipe welding and become, the high temperature tempering treatment, ensure that the deformation is small, rigid good, the intensity is big.
Eworld Machine Small Cnc Glass Cutting Machine Price List 10
02
The X,Y axis adopt reliable motor drive, selected pairing, ensure the smooth movement.
Eworld Machine Small Cnc Glass Cutting Machine Price List 11
03
Using high precision level gear rack drive, high precision, speed and strength.
IMG_20201102_1037
04
Adopts imported linear guide square, high precision, long life.
IMG_20201102_1036
05
Mechanical and electrical full excellent design, selection of all kinds of electrical accessories, the failure rate drop.
473
06
Software compatibility: compatible type3 / Artcam/Castmate/wentai and so on. Many kinds of CAD/CAM design software.
07
Performance worry about: a breakpoint renewal carving, power off recovery, processing time prediction, and other functions, the real human nature design.
113

Equipment

Equipped with imported cutter wheels and a set of setting tool.

A set of stability voltage power supply.

A set of best optimized software.

A set of computer operating system (including a set of computer and cutting software)

Electrical

It's operated directly by pc and adopt Microsoft Windows.

Voltage: 380v/50Hz. It's equipped with stability voltage device.

Motor: Yaskawa servo motor made in Japan(3 sets) and operating card imported from America.

Specification

Basic Info.

Model NO.:

CNC2620 Automatic glass cutting machine

Certification:

CE

Export Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe



Additional Info.

Trademark: EWORLD
Packing: Packed in Wooden Case, Seaworthy Package
HS Code: 8464201000
Production Capacity: 10 Sets/ Month

Technical Parameters

The cutting thickness 2~19mm(the thickness of 2~6mm and 8~19mm are different. The cutter wheels should be replaced and the pressure should be adjustable)
The cutting accuracy Parallelism:≤±0.20mm  catercorner:≤±0.2mm
The cutting speed 0~120m/minute(can be adjustable)
The outline size 4000×3200×1100mm;The tabletop size:2600×2100mm
The max cutting size 2440×1830mm
Transmission system The X, Y, Z Axis are equipped with Yaskawa JAPAN servo motor made in Japan and THK precision gears.
The cutter block It adopt pneumatic and spring at the same time. the cutter holder can rotate by 360°degree, and cut the glass up and down.(It can cut any shape)
The oiling supply method Auto oiling.
The transportation device It adopt Flotation device which makes it convenient to move the sheet glass.
The positioning system Pneumatic positioning system.



Mechanical

The material of the tabletop Metal tabletop(deformation will not happen)(The smoothness≤±0.2mm/m)
Rack/Guides Imported from Japan and switzerland.
Transmission belt/Transmission belt wheels Italy.
Cutter wheels/cutter holder BOHLE GEMANY.
The tabletop Industrial blankets imported from Korea (color in black).
Turret It use the pneumatic pressure and the spring pressure at the same time to make the cutting best.

Our Corporation

Shandong Eworld Machine Co., Ltd. founded in 2002,has been a high and new technology enterprise specializing in developing, empoldering and selling a series of automatic glass machines, laser engraving machine, Curved Toughened Glass Bending Machine ,window machines and door machines for many years.

Main products: Automatic Laminated glass (various shapes and low-E) production lines, automatic insulating glass production line, glass washing and drying machines, Automatic glass cutting machines, glass engraving machines, laser engraving machine,CNC router machine,CNC Woodworking machine,CNC Advertising machine,PVC window machine,PVC door machine,PVC window and door machine,PVC bending machines,PVC and Aluminum welding machine,PVC and Aluminum cutting saw,corner cleaning machine and other related products.

Software

1. Special cutting soft(It can be used under Windows System).

2. There is a graphic library with hundreds of shapes which is convenient for drawing and operating.

3. There is also a set of Auto CAD drawing software.

4. The optimized software can be selected(Enter the size of the sheet glass directly, then it can cut the glass automatically and it’s not necessary to cut by using CAD drawing).

5. There is a function of auto correcting which can make the cutting accuracy high.

6. There is also a selecting function of cutting path.

7. There is also a function of origin point correcting.

8. Operating Entering: Key board and mouse.

114
