NO.1
++
Eworld Machine Glass Processing Machines Glass Processing Machines Manufacturers
Brand
Eworld
Key words
Vertical Glass Drilling and Milling Machine
Power
12kw
Function
Glass Drilling Milling
Model
EWVC 2530

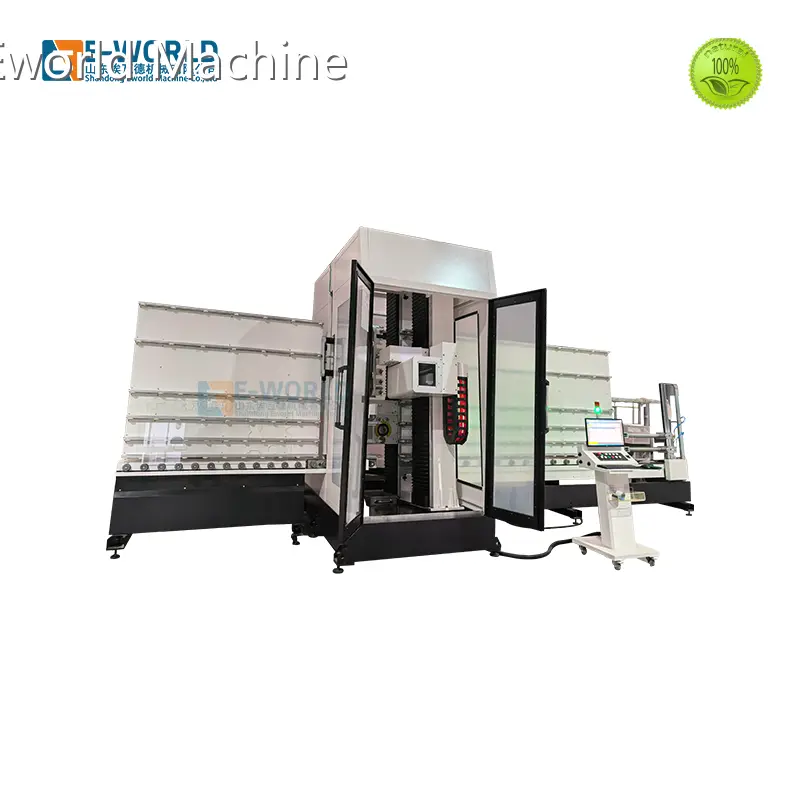

Machine Description：
Vertical glass CNC machine. It is a five-axis composite CNC working center which is designed for drilling hole, milling notches, cut-outs, countersinking, inner grinding and polishing on all regular and most irregular glass sheet with thickness of 4-25mm. The machine is controlled by a high-end numerical control operating system to achieve precise control of each servo axis. This flexibility of the control system can meet the requirement of different products. Combined with the structure of high rigidity and high stability, glass processing in high-speed and high-precision can be easily implemented. The electrical components used in the machine are CE standard, and the connectors of the electrical components are waterproof, which can ensure safety.
All work can be processed automatically and the complicated jobs can be performed in quick speed and high efficiency with smallest investment. Thanks to the self-developed CAM software, many powerful functions can be used. It can automatically generate processing technology for different processing graphics, and generate processing programs according to specific processes. Same time, it also has auxiliary functions such as library management and tool library management, which greatly reduces the heavy processing operations, making it so easy to operate. The vertical glass drilling and milling machine is a perfect solution for processing frameless shower door, glass curtain wall, balustrade, building glass etc.
| Machine size (Length*width*height) |
8200X3100X4200mm |
|---|---|
| Machine weight | 6100KG |
| Max glass size | 2000x3000mm |
| Min glass size | 500x300mm |
| Glass thickness | 4-25mm |
| Max Glass weight | 310KG |
| Max axis speed(X，Y/V，Z/W） | 60，50，15m/min |
| Spindle power | 7.5+7.5 KW |
| Motor power | 12 KW |
| Max spindle rotating speed | 12000 rpm |
| Tool holder cone specification | BT30 |
NO.2
++
NO.3
++
++
++
++
++
++
++
FAQ
Yes,we are the professional manufacture which have more than 5 workshops.
2. How about the service?
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english, communication barrier free
3. What’s the guarantee?
1).Our guarantee for 18 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
4. Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Allof our engineers have passport.
5. If our price is higher than another company or factories?
Please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous andreliable parts for the machines inside.
6. How long is the delivery time?
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
7. What is the payment ?
Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
Company Advantages
· Eworld Machine glass processing machines is manufactured by skillful workers using top class techniques and modernized machinery.
· The product is accurately manufactured to the highest quality standard.
· The product will be further developed to suit the more application needs in the future.
Company Features
· Supplying glass processing machines with the high quality and fashionable design is what Eworld Machine has been doing.
· We have a team specializing in product development. Their expertise enhances the planning of product optimization and process design. They effectively coordinate and implement our production.
· Our commitment to contributing to the happiness of customers by ensuring their profit with our award-winning products is what drives us every day.
Application of the Product
The glass processing machines developed by Eworld Machine is widely used in industry.
Eworld Machine always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
