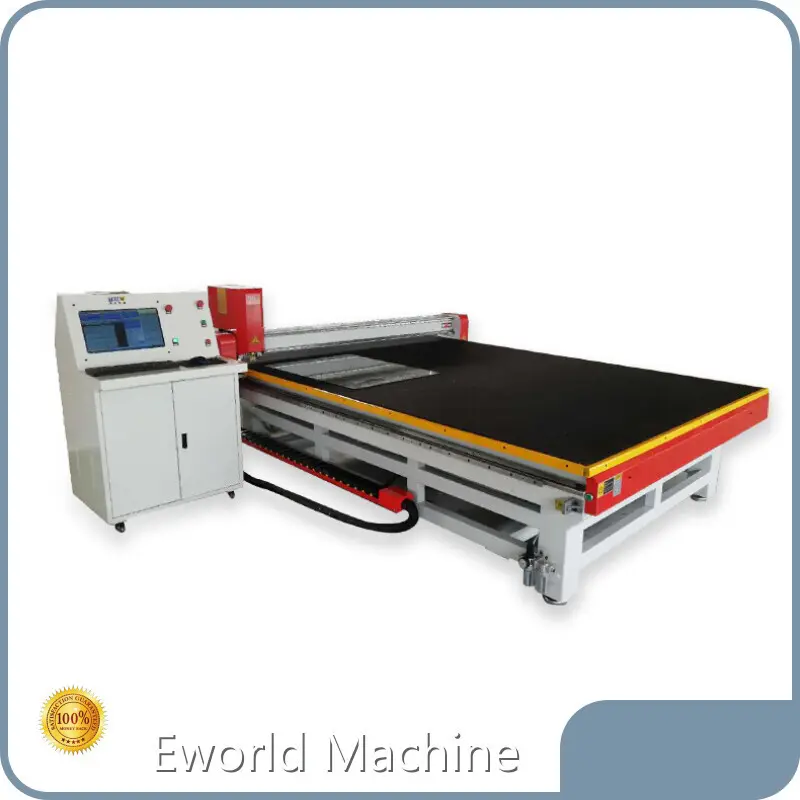

Bestglass Cutting and Polishing Machine
Product details of the glass cutting and polishing machine
Product Overview
Perfect design: the design of Eworld glass cutting and polishing machine is carefully conducted. Its design has been proven to be a perfect combination of aesthetics and functions. This product has been tested for good performance and durability. The product is getting more and more popular in the industry for its considerable economic benefits.
Product Information
Our glass cutting and polishing machine has the following advantages over similar products.
Introduction
1. Work flow: After starting the inputting machine, arms automatically suck glass from the shelf. Under sensor controlled, glass automatically find glass edge in the X and Y directions. After moving glass sheets to designated location, transport glass to the automatic cutting table.Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph.
2. The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing.
Features
Equipment
Equipped with imported cutter wheels and a set of setting tool.
A set of stability voltage power supply.
A set of best optimized software.
A set of computer operating system (including a set of computer and cutting software)
Electrical
It's operated directly by pc and adopt Microsoft Windows.
Voltage: 380v/50Hz. It's equipped with stability voltage device.
Motor: Yaskawa servo motor made in Japan(3 sets) and operating card imported from America.
Specification
|
Basic Info. |
|
Model NO.: |
CNC2620 Automatic glass cutting machine |
|
Certification: |
CE |
|
Export Markets: |
North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe |
|
Additional Info. |
| Trademark: | EWORLD |
| Packing: | Packed in Wooden Case, Seaworthy Package |
| HS Code: | 8464201000 |
| Production Capacity: | 10 Sets/ Month |
|
Technical Parameters |
| The cutting thickness | 2~19mm(the thickness of 2~6mm and 8~19mm are different. The cutter wheels should be replaced and the pressure should be adjustable) |
| The cutting accuracy | Parallelism:≤±0.20mm catercorner:≤±0.2mm |
| The cutting speed | 0~120m/minute(can be adjustable) |
| The outline size | 4000×3200×1100mm;The tabletop size:2600×2100mm |
| The max cutting size | 2440×1830mm |
| Transmission system | The X, Y, Z Axis are equipped with Yaskawa JAPAN servo motor made in Japan and THK precision gears. |
| The cutter block | It adopt pneumatic and spring at the same time. the cutter holder can rotate by 360°degree, and cut the glass up and down.(It can cut any shape) |
| The oiling supply method | Auto oiling. |
| The transportation device | It adopt Flotation device which makes it convenient to move the sheet glass. |
| The positioning system | Pneumatic positioning system. |
|
Mechanical |
| The material of the tabletop | Metal tabletop(deformation will not happen)(The smoothness≤±0.2mm/m) |
| Rack/Guides | Imported from Japan and switzerland. |
| Transmission belt/Transmission belt wheels | Italy. |
| Cutter wheels/cutter holder | BOHLE GEMANY. |
| The tabletop | Industrial blankets imported from Korea (color in black). |
| Turret | It use the pneumatic pressure and the spring pressure at the same time to make the cutting best. |
Our Corporation
Shandong Eworld Machine Co., Ltd. founded in 2002,has been a high and new technology enterprise specializing in developing, empoldering and selling a series of automatic glass machines, laser engraving machine, Curved Toughened Glass Bending Machine ,window machines and door machines for many years.
Main products: Automatic Laminated glass (various shapes and low-E) production lines, automatic insulating glass production line, glass washing and drying machines, Automatic glass cutting machines, glass engraving machines, laser engraving machine,CNC router machine,CNC Woodworking machine,CNC Advertising machine,PVC window machine,PVC door machine,PVC window and door machine,PVC bending machines,PVC and Aluminum welding machine,PVC and Aluminum cutting saw,corner cleaning machine and other related products.
Software
1. Special cutting soft(It can be used under Windows System).
2. There is a graphic library with hundreds of shapes which is convenient for drawing and operating.
3. There is also a set of Auto CAD drawing software.
4. The optimized software can be selected(Enter the size of the sheet glass directly, then it can cut the glass automatically and it’s not necessary to cut by using CAD drawing).
5. There is a function of auto correcting which can make the cutting accuracy high.
6. There is also a selecting function of cutting path.
7. There is also a function of origin point correcting.
8. Operating Entering: Key board and mouse.
