E-WD1600 Horizontal Glass Washing Machine

Minimum order quantity: 1 set

FOB price: USD 3500-5000

Supply capacity: 10 sets/month

Payment method: L/C, T/T, Paypal, Western union

Delivery period: 20-25 days after deposit

Regular packaging: suitable for seaworthy package

Inquiry

Write a Review

Production description

Packing terms: suitable for shipment by sea

Terms of payment: 30% T/T deposit, the balance should be made before shipment

Delivery time: within 20-25 days after receipt of the buyer’s 30% deposit.

Guarantee: one whole year after installation

Features

E-WD1600 Horizontal Glass Washing Machine 8

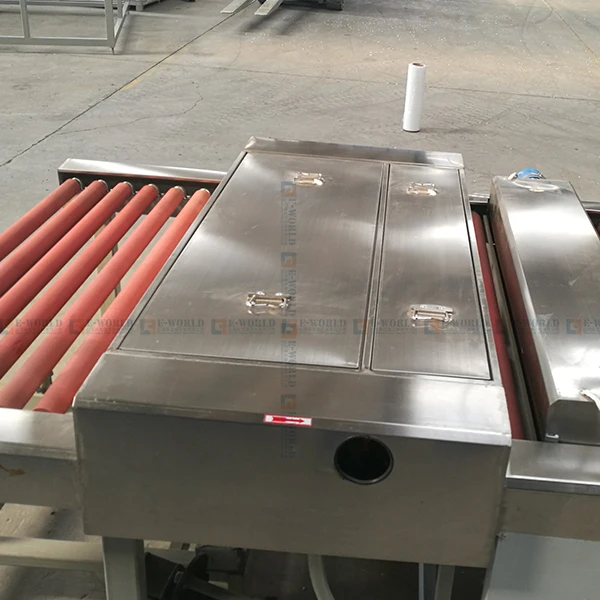

This Horizontal Glass Washing Machine is designed for cleaning flat glass with thickness 3-12mm. The machine adopts horizontal structure, and consists of in-feed, washing, drying and out-feed section and air blower case and electric control box,which is easy to operate with good cleaning effect, reliable performance.

E-WD1600 Horizontal Glass Washing Machine 9

Adopts 3 pair brushes, 2 pair sponge roller, and one pair air knife hot wind drying system. The multi-functional combination of independent blower, cycling water and hot air makes the operation more convenient.

E-WD1600 Horizontal Glass Washing Machine 10

All the cleaning parts and installation (Including heating flange, temperature sensors, pipe, tank, etc.) are made of high-quality stainless steel material. It can be anti-corrosion, the water cycle doesn't plug, not rust.

Sucking water rollers are made of the quality polymer material, It has a strong capacity to suck water, longer life.

The rubber roller is made up of special rubber, formed by the grinding, good wear resistance, anti-aging, high accuracy.

Water tanks with steel plate can freely push and pull to prevent the dust submerged water source, imported drive and step-less speed regulation.

Specification

Technical Parameters

Dimension	360020001000mm
Power	380 v/220V
Fequency	50 hz
Total power	8 KW
Working speed	3-5m/min
Max Glass width size	1600mm
Mini glass size	200*300mm
Glass thickness	3-12mm
Total weight	1300kg
Brusher	3 pairs
Water tank	one
Sponge	3 pairs
Hot knife	1 pair

Technical Parameters

Model NO.:	E-WD1600
Certification:	CE
Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe

Additional Info.

Trademark:	EWORLD
Packing:	Packed in Wooden Case, Seaworthy Package
HS Code:	8464201000
Production Capacity:	10 Sets/ Month
