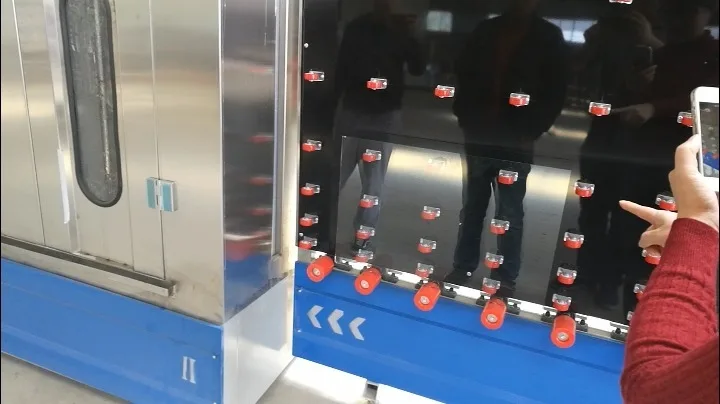

E-LD1800 Vertical Glass Washing Machine CE CERTIFICATE for European Union
Eworld E-LD1800 vertical glass washing machine holds official CE certification, fully complying with EU safety and quality standards. This fully automatic unit integrates washing, rinsing and hot air drying in one process. Built with durable stainless steel frames and high-quality brush rollers, it delivers thorough cleaning for tempered, Low-e and insulated glass. Equipped with water recycling and overload protection systems, it cuts operating costs and ensures safe operation.
Minimum order quantity: 1 set
FOB price: USD 7500-9000
Supply capacity: 10 sets/month
Payment method: L/C, T/T, Paypal, Western union
Delivery period: 20-25 days after deposit
Regular packaging: suitable for seaworthy package
Packing terms: suitable for shipment by sea
Terms of payment: 30% T/T deposit, the balance should be made before shipment
Delivery time: within 20-25 days after receipt of the buyer's 30% deposit.
Guarantee: one whole year after installation
Features
This vertical glass washing and drying machine realizes continuous automatic cleaning and drying for various architectural and decorative glass.
● It is painted by an electrostatic paint for protection against a rust and scratchs.
● Conic moving gears are made from a special steel alloy.
● Nuts corrosion-proof, apertures for nuts aluminium.
● A working direction of action with left on the right party.
● Brushes from above and from below have adjustment for approach.
● The electro system corresponds to safety rules.
● Heating up plates and water tank from stainless steel.
● Special brushes for reflecting glasses.
● Adjustment of speed of a running tape.
● Covers stainless steel windows.
● LOW-E option
● Power: 380V 50HZ 3 phase or 3 Phase,220v ,60hz
● CE CERTIFICATE for European Union
E-LD18000 Vertical Glass Washing and Drying Machine
The Eworld E-LD1800 vertical glass washer features a rigid vertical back-plate conveyor which engineered to eliminate glass slippage and edge deflection during high-throughput cleaning. The core washing section utilizes three pairs of dynamically balanced, high-density varnothing 180mm brushes, automatically adjusting to glass thicknesses from 3mm to 19mm via a precision rack-and-pinion synchronization system. For chemical purity, its multi-stage water circuit operates a cascaded filtration setup with dedicated high-volume spray nozzles. Crucially, the drying stage employs a pair of aerodynamically optimized, inclined stainless steel air knives, fed by a sound-insulated high-pressure blower, delivering a high-velocity laminar air curtain that shears water microscopic boundaries off Low-E surfaces without thermal thermal stress.
Specification
|
Technical Parameters |
|
Working size |
1800*2500mm |
|
Washing thickness |
3-12 mm |
|
Brusher |
6 pcs |
|
Hot knife |
1 pair |
|
Sponge roller |
1 pair |
|
Total power |
17 kw |
|
Feeding section |
2200*700*2200mm(Length*Width*Height) |
|
Washing and Drying section |
2000*1200*2600mm(L*W*H) |
|
Outlet section |
2500*700*2200mm(L*W*H) |
|
Can wash LOW-E Glass/Multi-coated glass |
|
|
Technical Parameters |
| Model NO.: | E-LD1800 |
| Price | |
| Certification: | CE |
| Type: | |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe |
|
Technical Parameters |
| Trademark: | EWORLD |
| Packing: | Packed in Wooden Case, Seaworthy Package |
| HS Code: | 8464201000 |
| Production Capacity: | 10 Sets/ Month |
