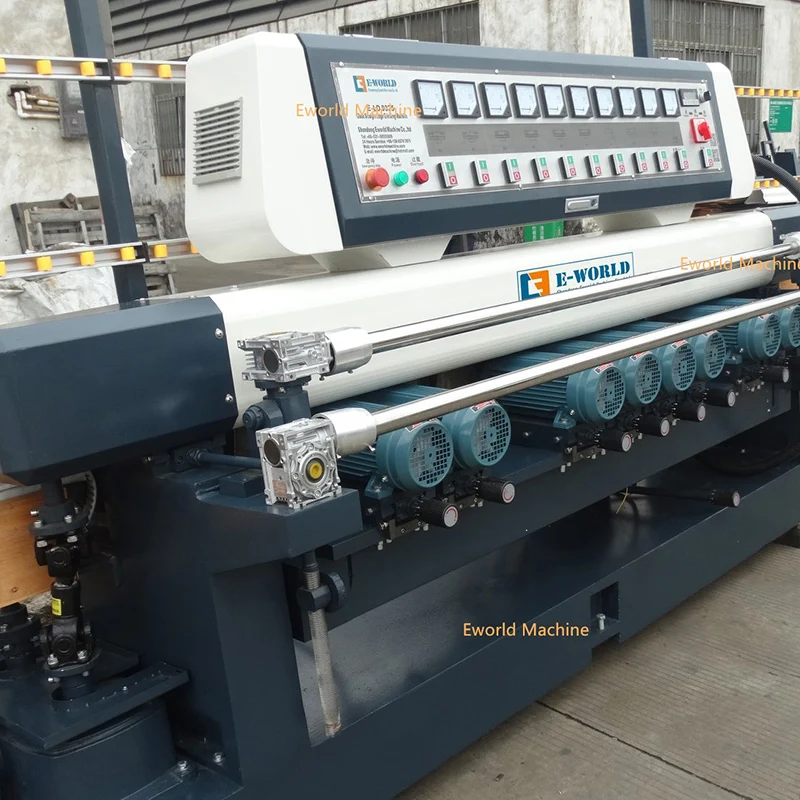

E-LD261 9-Motor Glass Bevelling and Polishing Machine
Eworld’s E-LD261 9-motor straight-line glass polishing and beveling machine integrates coarse grinding, precision fine grinding, mirror polishing and base edge finishing with separate dedicated spindles, eliminating repeated workpiece repositioning. It handles 3–12mm architectural, furniture and mirror glass, supporting adjustable 0–30° bevel angles and 1.5–40mm bevel widths. Stepless variable conveyor speed from 0.4–5 m/min paired with reinforced timing belt transport guarantees steady feeding without scratches. Equipped with a heavy-duty anti-vibration steel frame and standard PLC parameter panel, it stabilizes 21kW total power output for consistent high-gloss edge effects.
Minimum order quantity: 1 set
FOB price: USD 17000-22000
Supply capacity: 10 sets/month
Payment method: L/C, T/T, Paypal, Western union
Delivery period: 20-25 days after deposit
Regular packaging: suitable for seaworthy package
E-LD261: Glass beveling and polishing machine
Price: USD 17000-22000
Packing terms: suitable for shipment by sea
Terms of payment: 30% T/T deposit, the balance should be made before shipment
Delivery time: within 20-25 days after receipt of the buyer's 30% deposit.
Guarantee: one whole year after installation
Machine structures
Straight line glass polishing and beveling machine is suitable for processing the bevel angle and hemline of glass. Easy to adjust the angle of the slope and the thickness of the glass.
● Cast steel machine base
● Single chip control system
● 9 wheels, 1 felt polishing wheel, with cerium oxide, pneumatic polishing assistant.
● Glass thickness, angle adjustment adjusted on control panel
● High speed inducing motor. Speed 2480rppm/min.
● Conveyor chain
● Stainless steel water tank
● Aluminum or steel glass support for option
Product Features
- Adopts the design of 2-wheel grinding, 3-wheel accurate grinding, 3-wheel polishing and 1-wheel hemline repair.
- CVT adjusts the processing speed.
- PLC controller if needed.
- Input and output conveyors adopt timing belt to improve the stability of transmission.
- The finished edge will be as bright and clear as the glass itself.
- Easy to operate and maintain.
- All items have got CE approved, and are strictly according to CE standard.
Advantages
The E-LD261 nine-motor glass beveling polishing machine boasts integrated processing strengths and has CE certification.
- 9-Motor High-Efficiency System: Integrates 9 independently calibrated motors to handle coarse grinding, fine beveling, and cerium oxide polishing sequentially in a single pass, drastically saving processing time.
- Precision Angle & Width Control: Engineered with advanced alignment tracks and stable pressure plates to guarantee strict angle accuracy and uniform bevel widths across varying glass thicknesses.
- Heavy-Duty, Vibration-Free Chassis: Built with a reinforced, rigid steel structure that minimizes mechanical vibration, ensuring operational stability during continuous, high-volume production.
- PLC Automation & Easy Operation: Features an intuitive control interface that allows operators to adjust parameters quickly, minimizing human error and reducing onboarding time for workers.
Specification
|
Technical Parameters |
|
Quantity of motors |
9 sets |
|
Minimum grinding size |
50 mm x 50 mm |
|
Thickness of the processed glass |
3mm - 12mm |
|
Grinding speed |
0.4 - 5m/min |
|
Beveling degree |
0-30° |
|
Beveling width |
1.5mm-40mm |
|
Power |
21kw |
|
Voltage |
380V/50 Hz |
|
Weight |
3500 kg |
|
Packing size |
3.8m χ 1.2m χ 1.5m |
|
External dimension(L x W x H) |
7.0m x 1.2m x 2.5m |
|
Basic Info. |
| Model NO.: | E-LD261 |
| Certification: | CE |
| Type: | Glass Bevelling Edging Machine |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe |
|
Additional Info. |
| Trademark: | EWORLD |
| Packing: | Packed in Wooden Case, Seaworthy Package |
| HS Code: | 8464201000 |
| Production Capacity: | 10 Sets/ Month |
application
This E-LD261 9-motor glass edge polishing machine targets diversified glass deep-processing production scenarios across multiple industries. It is perfectly matched with standardized assembly line workshops supporting continuous, uninterrupted mass processing. The machine adapts to both large-scale batch orders and small-batch customized processing thanks to flexible adjustable bevel specifications. The glass beveling polishing machine fits well in automated central glass processing factories with coordinated cutting, tempering and edging procedures. And it also works for independent specialized polishing workshops focusing on high-precision edge finishing. Certified for stable long-hour operation, the machine meets the production demands of commercial decorative processing bases, domestic deep-processing factories and export-oriented glass manufacturers.
