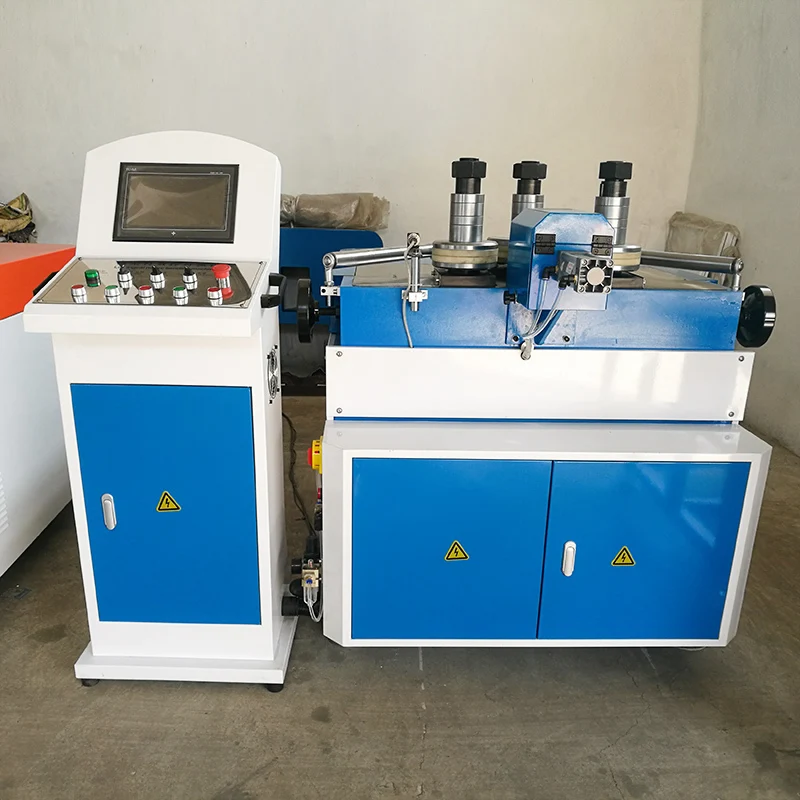

CNC Aluminium Profile Bending Machine
Eworld Machine’s CNC aluminium profile bending machine delivers precision arcs on complex aluminum, steel and PVC sections. Servo-driven rollers and a programmable 3-axis system ensure repeatability, while touch-screen controls store libraries of profiles. Optional mandrels prevent distortion, making it ideal for curtain walls, windows and automotive trims.
Price: USD 7,500$ FOB Qingdao, China
Delivery time: Within 25 days after receiving the down payment.
30% of total send by T/T as down payment, 70% before delivery by T/T.
Equipment Features
1.The aluminium bending machines are suitable for various metal profile or profile (aluminum alloy doors and windows type material, insulation Duanqiao profiles).
2.These CNC profile bending machines adopts imported CNC automatic computer control, make the operation more simple and convenient.
3.A special bend arc software.
4.The ability to detect material of rebound data, eliminate rebound.
5.Able to bend C shape, U shape, ellipse, circle, such as spring shape.
6.Because of the use of numerical control hydraulic system, positioning accuracy ≤0.01mm
7.The performance of their products reach Europe advanced CNC bending arc machine standard.
Product Design
Automated aluminum profile bending lines combines a rigid welded steel frame with servo-driven, hardened steel rollers arranged in a three-axis, closed-loop architecture. The open-C-frame grants unobstructed loading of long sections, while quick-change tooling and automatic mandrel support prevent profile distortion. A touchscreen PLC stores curve libraries, enabling instant recall and real-time correction for flawless arcs every cycle.
Specification
Specifications as follows: CNC Profile Bending Equipment for Aluminum Profile
|
Technical Parameters |
|
Model number |
WD360 |
|
Power supply |
380V 50Hz (3-phase,4 wires) |
|
Motor power |
6 kw |
|
Max. Bending width |
150mm |
|
Min bending ard diameter |
230 |
|
Roller rotating speed |
1-8r/min |
|
Roller mould max diameter |
200mm |
|
Top roller traveling |
280mm |
|
Roller diameter |
60mm |
|
Working pressure |
0.2-0.3Mpa |
|
Hydraulic push pressure |
20 T( 200Mpa) |
|
Top roller positioning precision |
0.02mm |
|
Overall size |
1500*1200*1450mm |
|
weight |
1000 Kgs |
|
Technical Parameters |
| Condition | New |
| Place of Origin | Shandong, China (Mainland) |
| Machine Type | Aluminum bending machine |
| Raw Material | Aluminum profile |
| Material / Metal Processed | Aluminum |
| Power | Electric type |
| Automation | Automatic |
| Extra Services | Machining |
| Machine type | bending machine |
| Button and contact/PLC | DELTA |
| Automatic degree | CNC control |
| Power supply | 380V 50Hz |
| Motor power | 6 kw |
| Hydraulic method | |
| Processed profile | Aluminum profile |
|
Packaging & Delivery |
|
Packaging Details: |
Seaworthy package |
|
Delivery Detail: |
20-25 days after get payment |
application
This CNC aluminum profile bending machine shapes aluminum, steel and PVC extrusions into precise arcs for curtain-wall mullions, arched windows, door frames, handrails and display showcases. It bends solar-panel frames, automotive roof rails and bicycle rims with distortion-free curves, meeting aerospace tolerances when optional mandrels are fitted.
Fabricators use the aluminum section bending machine to create art-installation rings, lighting trusses and furniture legs, while signage makers form LED channel letters and large-diameter logos. Shipbuilders curve deck rails and hatch frames, and elevator companies bend decorative fascia profiles. The stored-program library lets users switch instantly between architectural glazing beads and irregular ellipses, making the aluminum extrusion bending machine indispensable for custom metal shops, fenestration factories and OEM suppliers seeking rapid, repeatable curves without secondary correction.
Looking for window profile bending machine, This device has just what you need!
