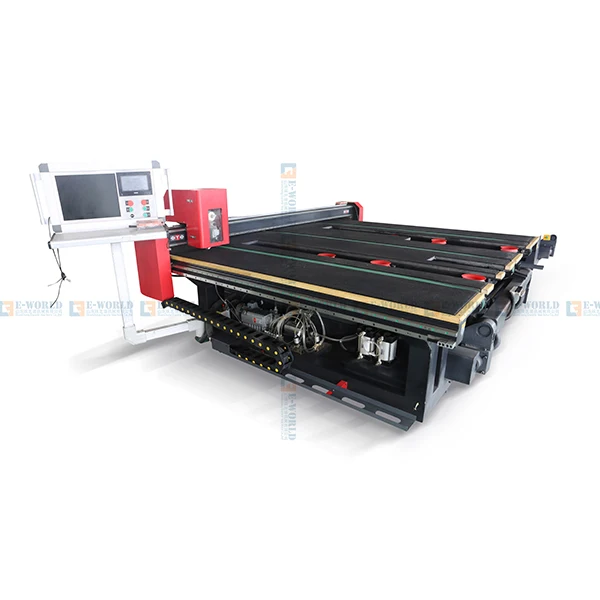

CNC 2620 Automatic Integrated Glass Cutting Machine (Loading,Cutting And Breaking)
This automatic integrated CNC glass cutting machine set is the latest development , which is including loading, taking glass, straight cutting, shape cutting, air flotation, breaking, automatically move and walk (around), remote control. It is currently the most advanced automatic glass cutting machinery system, instead of the traditional automatic glass cutting line(loading table, cutting machine, breaking table).It is significantly reduce the labor intensity of workers, with convenient operation, low investment and benefit advantages, greatly reducing the cost, it is the best choice for small and medium enterprise.
Introduction
Flexibility: Mobile device inside the glass CNC cutting machine,which can be moved to any glass location for loading, cutting, breaking.
Security: through a remote control device to operate the device, effectively avoid personal injury and property damage likely to result from, the CNC glass cutting table equipment itself also has a computer to automatically detect electrical protection devices, make the equipment very simple and safe to use.
Economy: it at least need 4 people for cutting glass with the traditional glass cutting line.Our automatic glass cutting table only need one person who can complete loading, cutting, breaking. Meanwhile workers through remote control operation without contact glass, completely eliminate this aspect of high security risks, using flexibility can be applied to different sizes of glass, a piece of equipment has the function of multiple devices.
Features
Working process
) Work flow: After starting the inputting machine, arms automatically suck glass from the shelf. Under sensor controlled, glass automatically find glass edge in the X and Y directions. After moving glass sheets to designated location, transport glass to the automatic cutting table. Glass cutting machine will move to coordinate origin, and automatically start to cut according to the preinstall graph.
2) The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing.
Specification
|
Technical Parameters |
|
|
The cutting thickness |
2-19mm |
|
The cutting accuracy |
Parallelism: ≤±0.15mm/m |
|
The cutting speed |
150m/minute(can be adjustable) |
|
The outline size |
3200*2200*900mm; |
|
The max cutting size |
2440*1830mm |
|
Transmission system |
The X、Y、Z Axis are equipped with reliable motor. |
|
The cutter block |
It adopt pneumatic and spring at the same time. the cutter holder can rotate by 360°degree, and cut the glass up and down.(It can cut any shape) |
|
The oiling supply method |
Auto oiling. |
|
The transportation device |
It adopt Flotation device which makes it convenient to move the sheet glass. |
|
Mechanical |
|
|
The tabletop |
The smoothness≤±0.2mm/m |
|
Rack/Guides |
Imported from Japan and switzerland. |
|
Turret |
It use the pneumatic pressure and the spring pressure at the same time to make the cutting best. |
|
Electrical |
|
|
Operate |
It’ s operated directly by pc and adopt Microsoft Windows |
|
Voltage |
380v/50Hz |
Notice:
1. It can cut the glass of various thickness and shapes.
2. The seller should supply the services of installation, commissioning and training(in china).
3.One years guarantee(Not including the artificial damage), long maintenance.
Application
The Eworld automatic integrated glass CNC cutting machine can handle glass thicknesses ranging from 2 to 19mm and offers a cutting accuracy of ±0.15mm/m, ensuring high precision in every cut. It features a maximum cutting size of 2440mm x 1830mm and a cutting speed of up to 150 meters per minute, which is adjustable to meet different production needs.
In the automotive sector, it cuts windshields and windows with high accuracy, ensuring safety and quality. For architectural projects, our automatic glass cutting line processes large glass panels for buildings, creating custom shapes and sizes required for modern designs. In the furniture industry, it crafts glass tabletops, mirrors, and decorative pieces with intricate designs. Additionally, it serves the art and craft sector by enabling the creation of complex glass artworks and stained glass.
Are you hesitating about the CNC glass cutting machine price? Don't hesitate, Eworld Machine can help you solve it!
