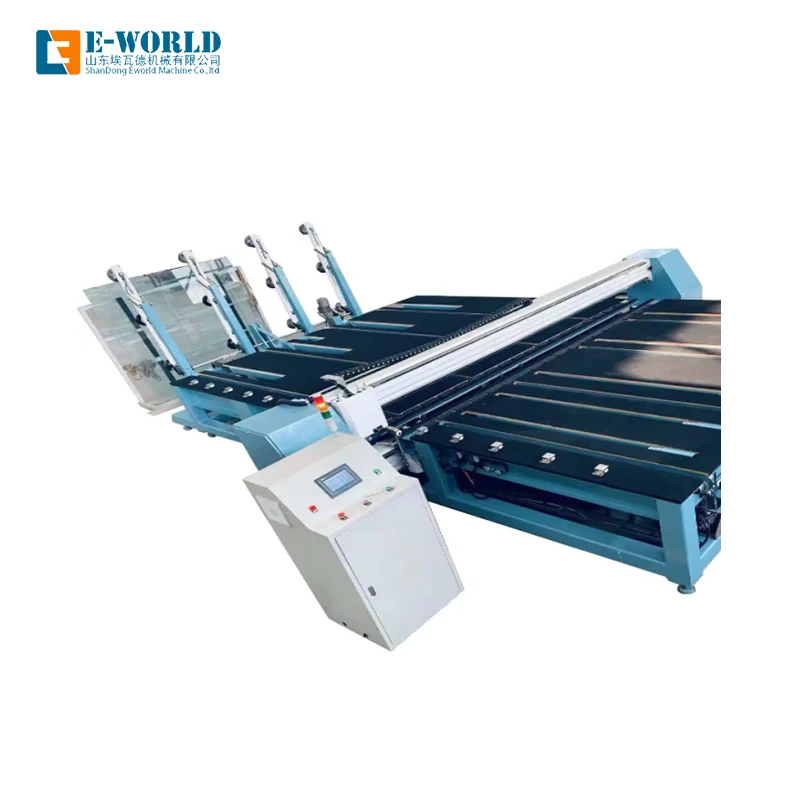

Full Automatic EVA Laminated Glass Cutting Machine
Full Automatic EVA Laminated Glass Cutting Machine
Introduction:
This is automatic glass cutting mainly designed for cutting EVA/PVB laminated glass, also can cut float glass.
It can complete glass loading ,cutting and breaking automatically.5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Brand
Eworld
Key words
EVA Laminated Glass Cutting Machine
Power
15KW
Feature
EASE TO USE
Function
Laminated Glass Cutting
Model
SWD-3826
Name
Full Automatic EVA Laminated Glass Cutting Machine
Product Description
Introduction:
This is automatic glass cutting mainly designed for cutting EVA/PVB laminated glass, also can cut float glass.
It can complete glass loading ,cutting and breaking automatically.Main Structure:
Frame was made with international square steel tube and box iron by welding.The key position had been annealing treatment and
gantry milling. So the frame has high stability and strength. Two-part construction to assemble the machine. The first part is the
artificial auxiliary feeding and transmission part, equipped with automated positioning system. The second paragraph contains the
upper and lower knife cutting system, the cutting film system, the heating system, and the auxiliary discharge system.
gantry milling. So the frame has high stability and strength. Two-part construction to assemble the machine. The first part is the
artificial auxiliary feeding and transmission part, equipped with automated positioning system. The second paragraph contains the
upper and lower knife cutting system, the cutting film system, the heating system, and the auxiliary discharge system.
| Max. glass cutting size | 3660×2440（mm） |
|---|---|
| Min. glass cutting size | 100×100（mm） |
| Cutting glass thickness | 3mm+0.38+3mm----10mm+0.76+10mm ( laminated glass ) |
| Cutting Error ( parallel ) | ≤±0.5mm |
| Cutting efficiency | 3-4 minutes/big piece |
| Diagonal Error | ≤±1mm/m |
| Cutter life | 30000-50000 meters |
| Machine outline dimension | 4800*3800*1300mm |
| Packing size | 40HQ*1 |
| Weight | 3000KG |
FAQ
Answer: Yes, we are professional manufacture which has more than 5 workshops.
Q2: How about the service?
Answer:
1). reply it at once if from Ali-trade manager if by email, it reply it within 12 hour
2). deliver max. days within 15 days
3). 24 hours for after-sale service
4). more than 12 years experience in this kind of machine field
5). fluent English, communication barrier-free
Q3: What s the guarantee?
Answer:
1). Our guarantee for 18 months.
2). 24 hour's technical support by email or calling
3). English manual and video tutorial
4). 2 years quality guaranty for the machine (excluding the consumables)
5). We will provide the consumable parts at an agency price
6). 24 hours of online service each day, free technical support.
Q4: Do you provide equipment operation training?
Answer:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passports.
Q5: if our price is higher than another company or factories?
Answer:please check, what is the difference of the machine parts, service and guarantee, especially the machine inner electric parts, sometimes, if machines have a breakdown, the most reason is the machine inner electric parts the problem, but we use the famous and reliable parts for the machines inside.
Q6: How long is the delivery time?
Answer: For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to the client's specific requirements, it would be 15 to 30 days.
Q7: What is the payment?
Answer: Any payment method you want, such as L/C, T/T, D/P, West union, and so on.
Answer: Any payment method you want, such as L/C, T/T, D/P, West union, and so on.
