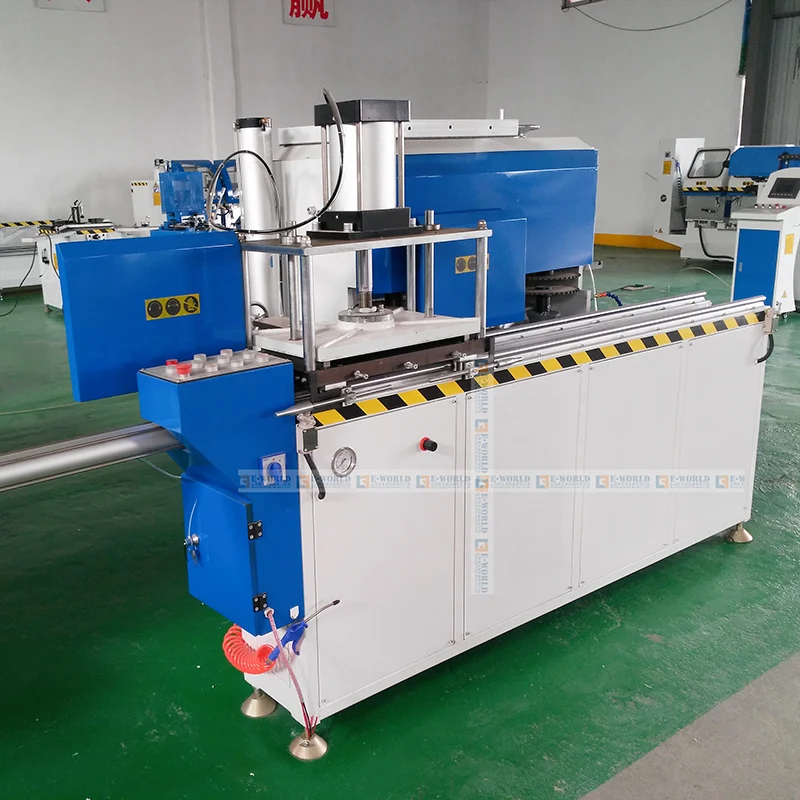

Automatic Aluminum Window End Milling Machine
LXD-250 Auto End-milling Machine: USD 3500-4500
1. It can be used for end milling of profiles for aluminum doors and windows.
2. With a large-sized work bench and long cutting feed travel, it can mill 6-10 profiles in one operation with adjustable multiple cutting tools.
3. It is unnecessary to replace the cutting tools in case of product change so as to save the production setup period and cost of cutting tools.
4. Multiple sets of cutting tools can work simultaneously or separately based on different profiles.
5. With bigger diameter of cutting tools, the quality of machining surface is better, the hydraulic damping cylinder is used to push the feed of cutting tools to enable more stable operations.
6. The thickened clamping plate can prevent the profiles from deforming.
7. Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
Production description
LXD-250 Auto End-milling Machine: USD 3500-4500
1. It can be used for end milling of profiles for aluminum doors and windows.
2. With a large-sized work bench and long cutting feed travel, it can mill 6-10 profiles in one operation with adjustable multiple cutting tools.
3. It is unnecessary to replace the cutting tools in case of product change so as to save the production setup period and cost of cutting tools.
4. Multiple sets of cutting tools can work simultaneously or separately based on different profiles.
5. With bigger diameter of cutting tools, the quality of machining surface is better, the hydraulic damping cylinder is used to push the feed of cutting tools to enable more stable operations.
6. The thickened clamping plate can prevent the profiles from deforming.
7. Before you buy the machine, please make sure then tell me your local power supply, then we can make the right according to your true voltage.
Specification
|
Technical Parameters |
| Model number | LXD-250 |
| Working air pressure | 0.5~0.8 Mpa |
| Air consumption | 30L/min |
| Power supply | 380V 50Hz |
| Input power | 6.6 kw |
| Main shaft diameter | Ø32mm |
| Milling cutter diameter | Ø250mm |
| Max. processing hole size | 40mm |
| Contour dimension(L×W×H) | 2400×970×1640mm |
| weight(about) | 450 kg |
|
Quick Details |
| 1. Condition: New | 11. Warranty: one year |
| 2. Place of Origin: Shandong, China (Mainland) | 12. After-sales Service Provided: Engineers available to service machinery overseas |
| 3. Model Number: LXD-250 | 13. Application: aluminum doors & windows |
| 4. Type: Universal | 14. Machine type: window milling machine |
| 5. CNC or Not: Normal | 15. Certificate: CE&ISO |
| 6. Voltage: 380V 50Hz | 16. Button and contact: Schneider |
| 7. Power(W): 6.6KW | 17. Machine colour: any colour or as your required |
| 8. Dimension(L*W*H): 2400×970×1640mm | 18. Main shaft diameter: 32mm |
| 9. Weight: 450kg | 19. Milling cutter diameter: 250mm |
| 10. Certification: CE&ISO | 20. Max. processing hole size: 40mm |
